Ingal Rigid Barrier Transition (RBT)
Ingal Rigid Barrier Transition (RBT)

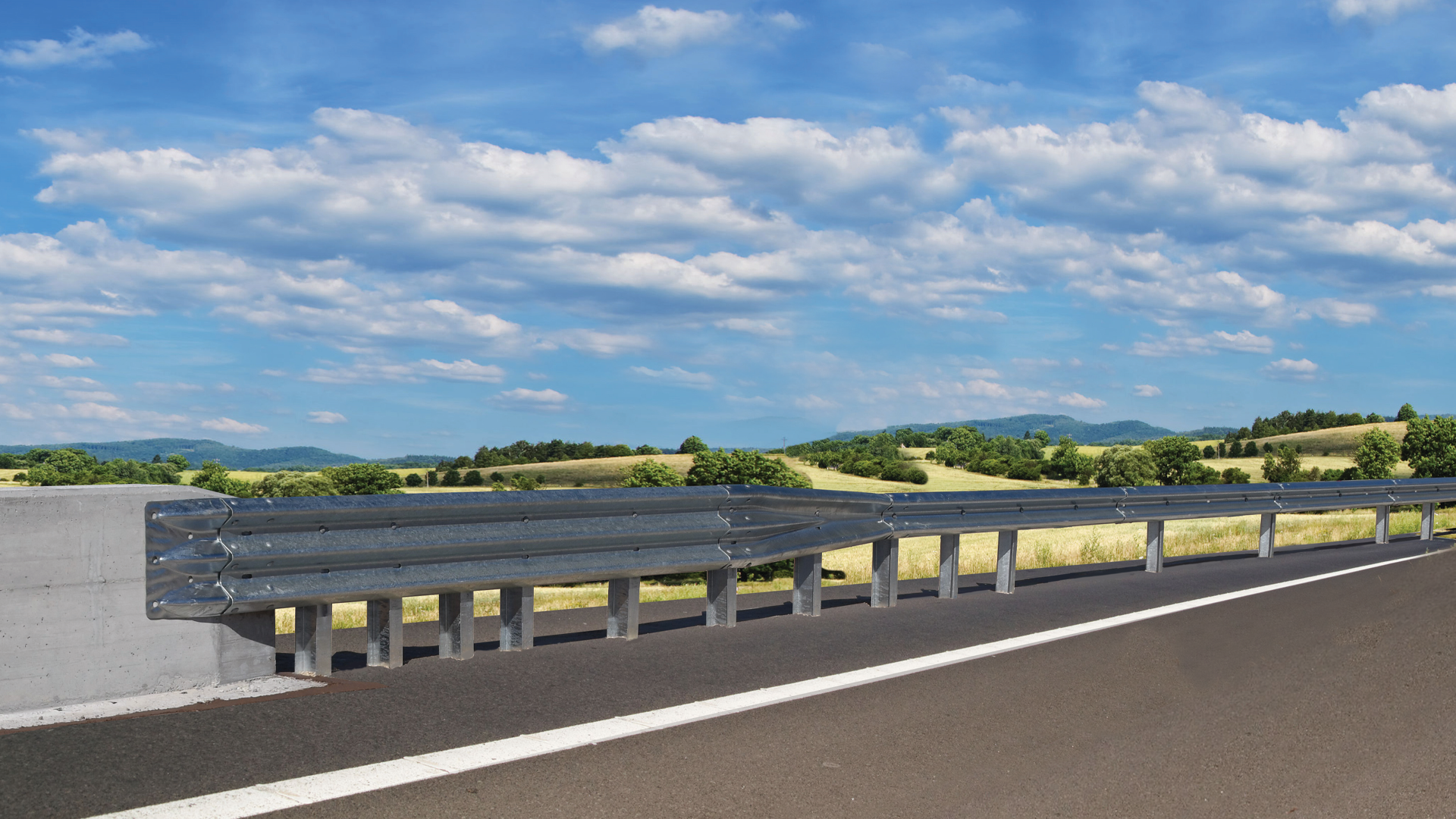

The Ingal RBT is a MASH TL3 compliant transition system designed for connecting semi-rigid barriers like W-Beam and Thrie-Beam to rigid concrete structures. It ensures seamless stiffness transitions, reducing risks such as vehicle rollover or rail rupture while maintaining safety at speeds up to 100 km/h. The Ingal RBT is a MASH TL3 compliant transition system designed for connecting semi-rigid barriers like W-Beam and Thrie-Beam to rigid concrete structures. It ensures seamless stiffness transitions, reducing risks such as vehicle rollover or rail rupture while maintaining safety at speeds up to 100 km/h.
235mm
Ingal RBT System Width
880mm
Rail height above ground
6m & 8m Transitions
Specific lengths for Ezy-Guard 4 and HC
Technical Specifications
Technical Specifications
Product Information Product Information

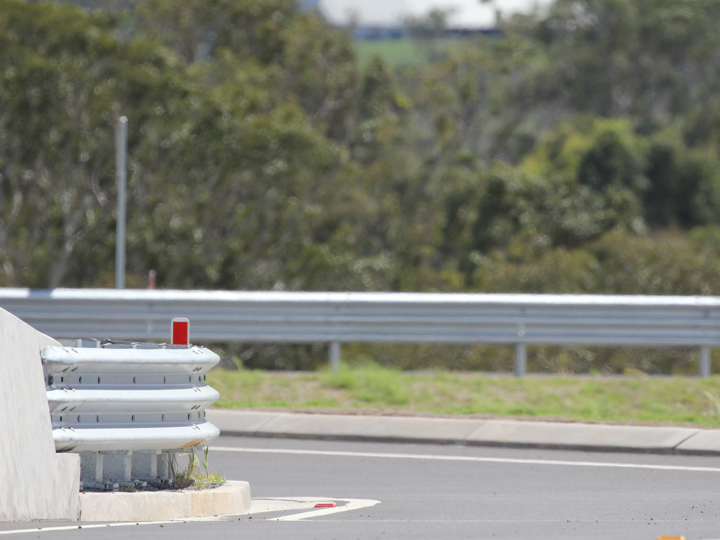

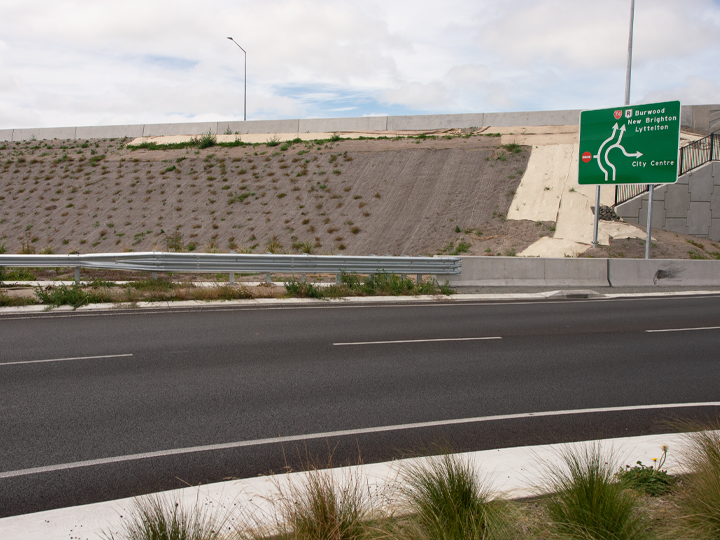

- Description DescriptionThe Ingal Rigid Barrier Transition (RBT) is a MASH Test Level 3 compliant system designed to connect semi-rigid barriers like W-Beam or Thrie-Beam to rigid concrete structures. It ensures the safe redirection of vehicles by minimizing risks such as vehicle rollover, pocketing, or rail rupture where there is a significant change in barrier stiffness.Description DescriptionFeatures• Seamless Stiffness Transition: The Ingal RBT provides a smooth connection between semi-rigid barriers (W-Beam, Thrie-Beam) and rigid concrete structures, reducing the risk of rollover or rail rupture..• MASH TL3 Compliant: Designed to handle impacts up to 100 km/h, providing reliable protection in high-speed environments.• Durability: Manufactured using BlueScope Steel with hot-dip galvanizing for long-lasting corrosion resistance and durability in various conditions.• Optimized for Ezy-Guard Systems: Transition lengths of 6m for Ezy-Guard 4 and 8m for Ezy-Guard HC ensure compatibility with existing systems, enhancing vehicle safety.Description DescriptionAcceptanceThe Ingal RBT is fully compliant with AS/NZS 3845 has been accepted by the Austroads Safety Barrier Assessment Panel. It is trusted for a wide range of road safety applications.Description DescriptionPerformance MetricsMASH TL3 Compliance: Successfully crash-tested, ensuring it meets impact and safety requirements.
- Technical Specifications Technical Specifications• Ingal RBT Post Length:• Ingal RBT Post Mass:• Ingal RBT System Mass:• Rail Height Above Ground:• Ingal RBT System Width:• Containment Level:1,830mm25kg251kg880mm235mmMASH Test Level 3Technical Specifications Technical SpecificationsApproved VariantsSingle-Sided Configuration: Suitable for verge applications.Double-Sided Configuration: Ideal for gore and median applications.Technical Specifications Technical SpecificationsApproved ConnectionsEzy-Guard 4: Transition length of 6m for connection to Ezy-Guard 4.Ezy-Guard HC: Transition length of 8m for connection to Ezy-Guard HC.
- Downloads DownloadsIngal RBT Product ManualPDF 3388KBDownloadDownloads DownloadsIngal RBT Data SheetPDF 284KBDownload
