Flexbeam G4
Flexbeam G4

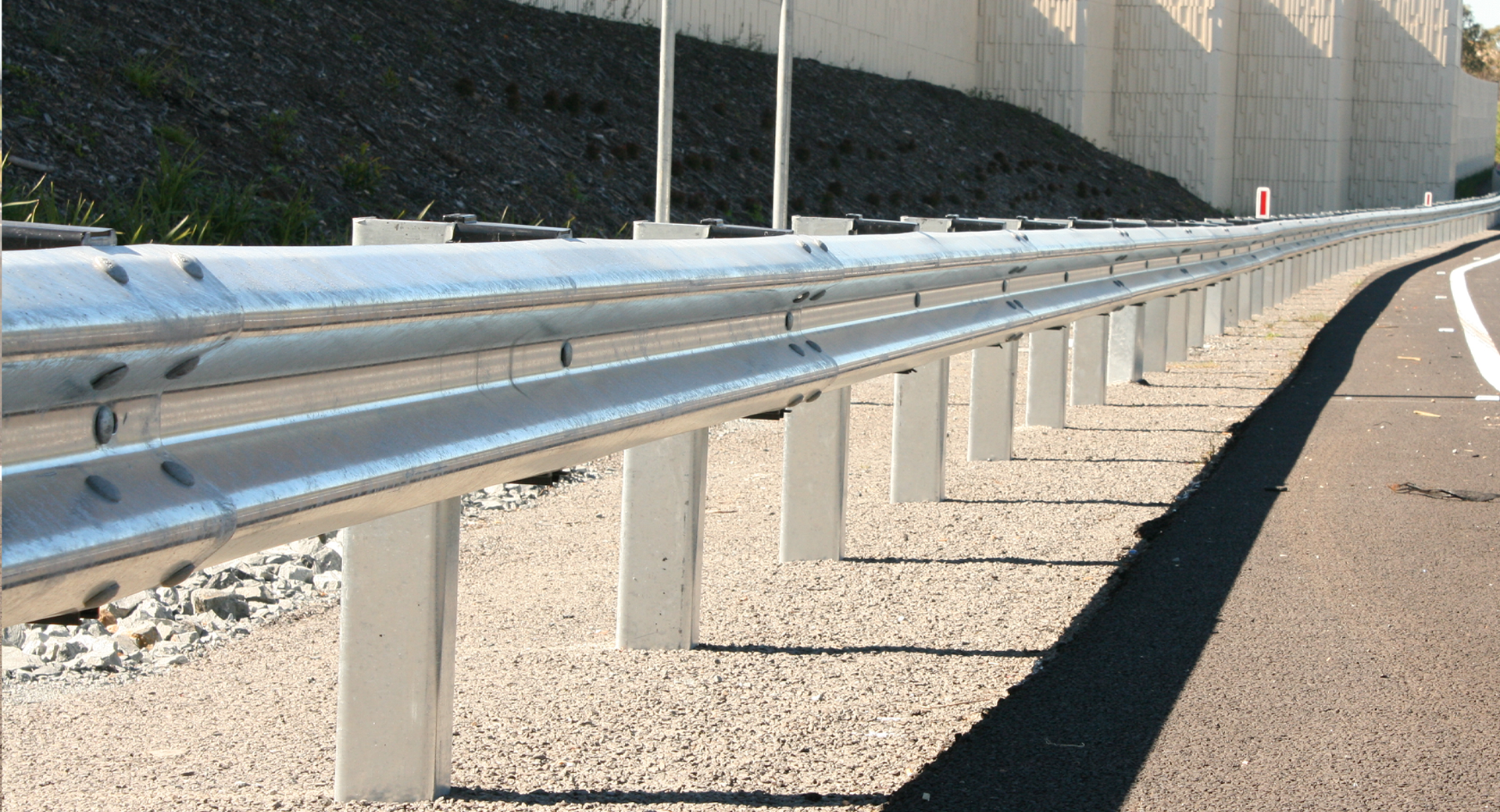

Flexbeam also known as W-Beam is a longitudinally corrugated Rail which is an important component in an effective Safety Barrier configuration. WBeam may (in conjunction with the use of specific Posts) form part of a Barrier which complies with various standards including AS/NZS 1170, AS/NZS 1596, AS/NZS 3845, Public Domain/G4, Type B and WW6. Flexbeam also known as W-Beam is a longitudinally corrugated Rail which is an important component in an effective Safety Barrier configuration. WBeam may (in conjunction with the use of specific Posts) form part of a Barrier which complies with various standards including AS/NZS 1170, AS/NZS 1596, AS/NZS 3845, Public Domain/G4, Type B and WW6.
NCHRP-350
Compliant
Nationwide Configuration
State-specific options available.
Product Information
Product Information
Product Information Product Information
- Description DescriptionFlexbeam W-Beam Rail is used in semi-rigid safety barriers in multiple applications and is integral to the safe & efficient redirection & containment of vehicles. WBeam Rail may be installed directly onto In Ground or Base Plated Posts or onto Spacer Blocks mounted upon Posts dependent upon the relevant standard. In a non-standard application WBeam may be mounted directly onto any suitable structure.Description DescriptionFeatures• Ease of Connection: W-Beam Rails join by overlapping and use Splice Bolts which lock into pre punched slots. Rail lengths allow for this overlap and are sold by “Net Lineal Length’ which refers to the effective length when Rails overlap. As an example, a 4m NLL Rail is 4.320m Overall but has 160mm at each end which is consumed when joined to another rail.• Standard Lengths: W-Beam Rails are available in standard lengths of up to 5m NLL and are punched to suit Splice and Post connections at each end. Some lengths and specific applications are available with additional Post slots.• Attachments: A range of connections to suit non roadside installations is available including Base Plated & In Ground Posts, Fishtail & Short Bullnose ends and, 45 & 90 Degree corners.Description DescriptionAcceptanceFlexbeam W-Beam guardrail is ‘deemed to comply’ with NCHRP-350 Test Level 3. For MASH-compliant systems, refer to the Ezy-Guard family of products.Description DescriptionPreformance MetricsNCHRP-350 Compliant: Flexbeam W-Beam is compliant with NCHRP-350 Test Level 3 standards for semi-rigid roadside barriers.State Compliance: Flexbeam W-Beam meets jurisdictional requirements across multiple Australian states, with specific configurations for each.
- Technical Specifications Technical SpecificationsSystem Specifications• W-Beam Profile Height:• W-Beam Profile Depth:• W-Beam Base Material Thickness:• W-Beam Length:• W-Beam Posts:312mm83mm2.7mm (also available in 3.5mm)Available in various lengths from 320mm up to 5320mm (Overall Length) or 5000mm Net Lineal LengthRefer to specific Barrier system for details.W-Beam Rail is manufactured from hot-rolled steel and hot-dip galvanized according to AS/NZS standards, ensuring it can withstand tough conditions and provide long-lasting performance.Technical Specifications Technical SpecificationsApproved VariantsPublic Domain/G4 Configuration: Designed for NSW, ACT, QLD, SA, NT. W-Beam Rails were used in Public Domain/G4 Barrier systems (including Terminals and Transitions) adopted by jurisdictions across Australia which have since been superceded by MASH and are designated as Legacy Barriers.Type B Configuration: Designed for use in VIC and TAS. W-Beam Rails are used in the Type B Public Domain system deemed to comply by VicRoads.WW6 Configuration: Designed for use in WA. W-Beam Rails are used in the WW6 Public Domain system deemed to comply by Main Roads WA.Base Plate Variation: Available for installations where posts cannot be driven into the ground.Technical Specifications Technical SpecificationsApproved ConnectionsEnd Treatments: Compatible with standard guardrail end treatments for safe termination.Transitions: Use Thrie-Beam transitions where required for connecting to stiffer barriers.
- Downloads DownloadsFlexbeam G4 product manualPDF 6246KBDownload
