The QuadGuard M10 is a redirective, non-gating crash cushion system designed to protect fixed hazards ranging from 610 mm to 1755 mm wide. Tested to MASH TL2 and TL3, the system provides controlled energy absorption and reliable vehicle redirection for both light vehicles and heavier passenger vehicles.
Product Information
Product Information
Product Information Product Information

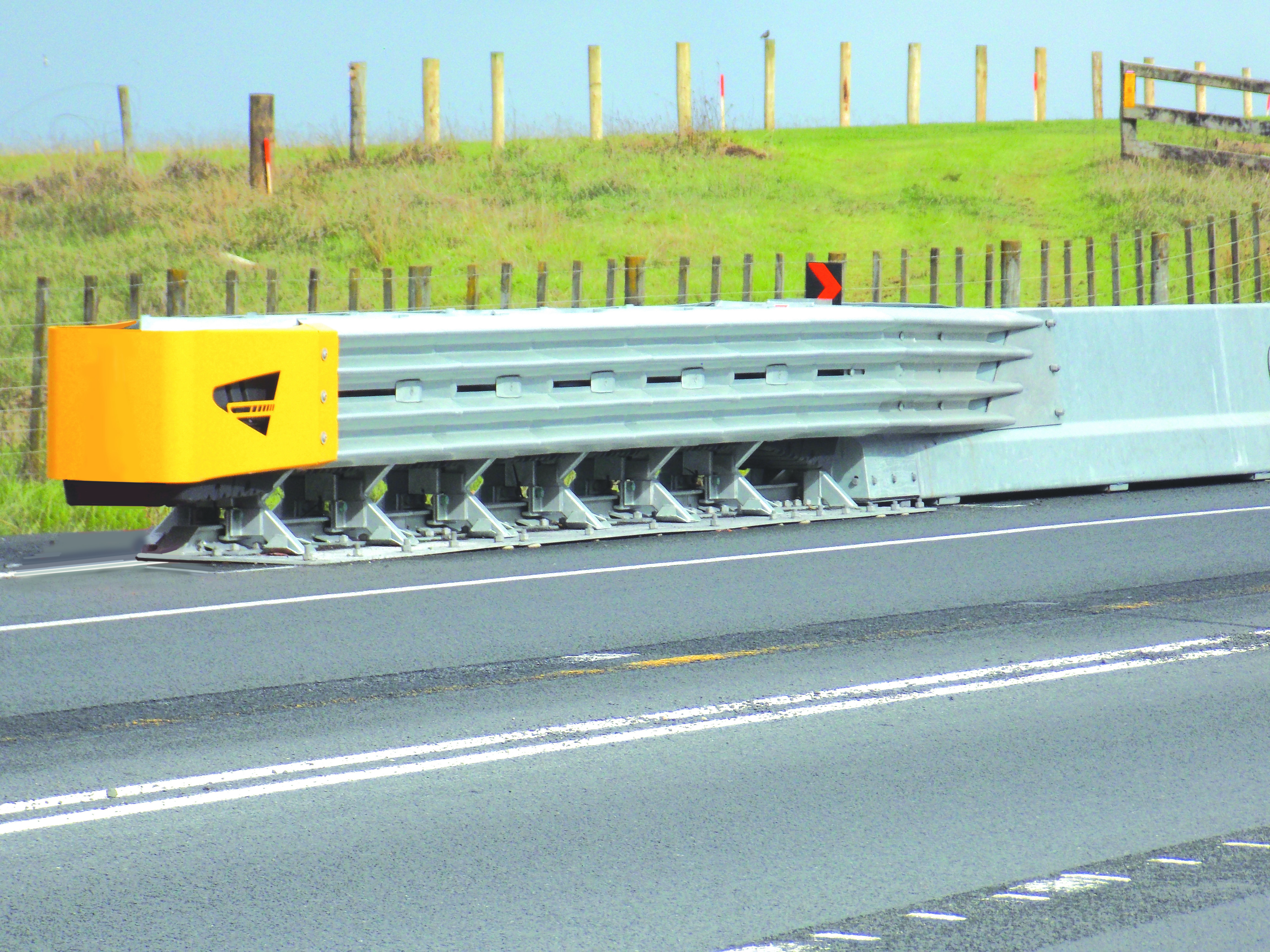

- Description DescriptionDescriptionThe QuadGuard M10 is a redirective, non-gating crash cushion incorporating a steel nose and staged energy-absorbing cartridges housed within a Quad-Beam™ panel framework. During head-on impacts, energy is absorbed through telescoping compression of the cartridge system, while side impacts are managed through controlled vehicle redirection.The system is available in configurations to suit hazard widths of 610 mm (MASH TL2 and TL3) and 1755 mm (MASH TL3).Features FeaturesFeatures• Crash tested and approved to MASH TL2 and MASH TL3• Accepted by the Austroads Safety Barrier Assessment Panel (ASBAP)• Designed in accordance with AS/NZS 3845.1 Road Safety Barrier Systems & Devices• Bi-directional performance for verge and median installations• Effective vehicle redirection for side impacts• Configurations available for hazard widths from 610 mm to 1755 mm• Permanent installation suitable for concrete pavements and concrete pads• Installation through asphalt and sealed pavements supported by a concrete pad• Compatible with permanent Ezy-Guard and Concrete Barrier systems
- System Specifications System SpecificationsSystem Specifications• System Length TL2:• System Length TL3:• System Width (M10 Standard):• System Width (M Wide - TL3):• Maximum rearward telescoping movement on impact:• Fender panel maximum allowable gap:• Minimum concrete strength:• Minimum concrete thickness:• Maximum cross-slope:• Maximum twist along system length:4.0m6.71m610mm1755mmup to 765mm20mm28MPa200mm for non-reinforced concrete roadway, 152mm for reinforced concrete pad8%2%Approved Variants Approved VariantsApproved Variants• QuadGuard M10 Standard: MASH TL2 & TL3 suitable for shielding hazards up to 610 mm• QuadGuard M Wide: MASH TL3 suitable for shielding hazards up to 1755 mm wideApproved Connections Approved ConnectionsGuardrailPermanent Concrete Barrier• Single Slope Concrete Barrier• Vertical Slope Concrete Barrier• F Shape Concrete BarrierPermanent Steel Barrier• BG800Temporary Concrete Barrer• REBLOC 50H_4 Safety Barrier
| Title | Type | Size | |
| QuadGuard® M10 24 MASH Assembly Manual v.0421 | 3765 KB | Download | |
| QuadGuard® M10 MASH Crash Cushion Data Sheet v.0724 | 3338 KB | Download | |
| QuadGuard® Visual Parts List v.0921 | 2936 KB | Download |
