QuadGuard
QuadGuard

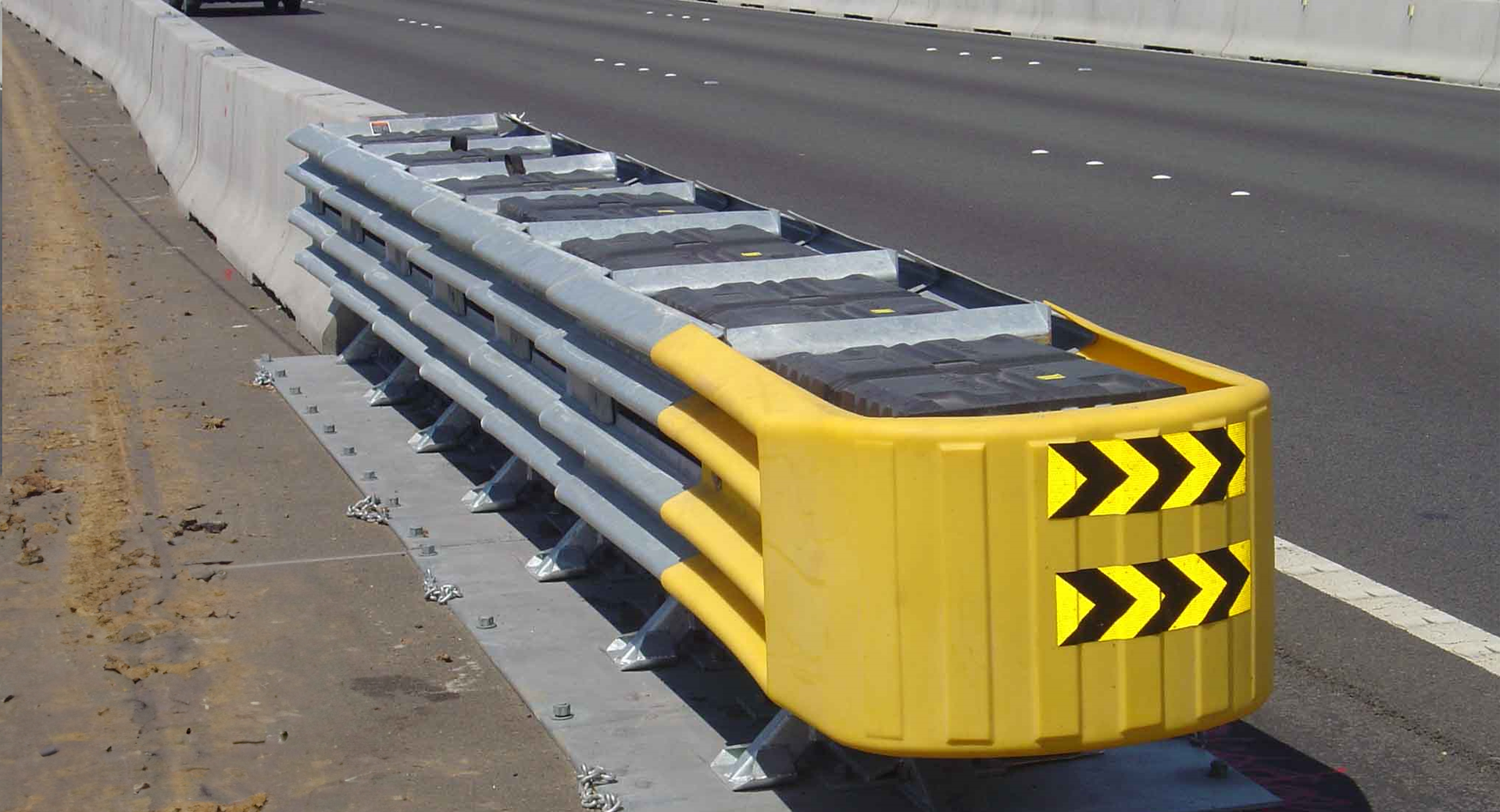

The QuadGuard® Steel Rail Crash Cushion is a redirective, non-gating crash cushion designed to protect hazards from 610 mm to 3200 mm wide. It features a durable steel rail system and is compliant with NCHRP 350 Test Levels 2 and 3, offering superior protection for a range of vehicle types. The QuadGuard® Steel Rail Crash Cushion is a redirective, non-gating crash cushion designed to protect hazards from 610 mm to 3200 mm wide. It features a durable steel rail system and is compliant with NCHRP 350 Test Levels 2 and 3, offering superior protection for a range of vehicle types.
NCRPH 350
TL2/TL3
TL2/TL3
Compliant
Wide Hazard
Protection
Protection
Ranging from 610 mm to 3200 mm
Long
Lifespan
Lifespan
Minimal Maintenance
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe QuadGuard® Steel Rail Crash Cushion is a versatile and durable safety barrier system designed for permanent installations. With a modular design, the system can be configured with 1 to 12 bays, depending on the required impact speed, making it suitable for both highand low-speed zones. The steel rail construction offers high impact resistance and the ability to protect wider hazards. Fully compliant with NCHRP 350 standards, it is an ideal solution for protecting roadside hazards.Description DescriptionFeaturesNCHRP 350 Compliance: Certified for impacts at 70 km/h (TL2) and 100 km/h (TL3), meeting the highest safety standards.Flexible Configuration: Can be configured with up to 12 bays to accommodate speeds up to 110 km/h.Durable Steel Rails: High-strength steel rail construction ensures long-lasting performance and effective energy absorption.Wide Hazard Protection: The system can protect hazards up to 3200 mm wide, making it suitable for large obstacles.Non-Gating Design: The crash cushion is fully redirective, ensuring vehicles are safely redirected away from hazards during side impacts.Description DescriptionAcceptanceThe QuadGuard® Steel Rail Crash Cushion is fully compliant with NCHRP 350 Test Levels 2 and 3, and has been approved for use by the Federal Highway Administration (FHWA). It is accepted for permanent installations where high containment levels are required.Description DescriptionCompliance and CertificationsNCHRP 350 TL2 Certified: Tested at impact speeds up to 70 km/h.NCHRP 350 TL3 Certified: Successfully tested at impact speeds up to 100 km/h.Performance Metrics: Demonstrates high energy absorption and vehicle redirection under NCHRP 350 criteria for various vehicle types.
- Tech Specs Tech SpecsSystem WidthSystem LengthSystem WeightPoint of Redirection610mm to 3200mmUp to 12 baysHigh Strength steel railsFully redirectiveTech Specs Tech SpecsApproved ConnectionsEzy-Guard HC: Approved for use, providing additional containment capabilities for high-risk areas.Public Domain W-Beam Guardrail: Permitted for use, compatible for reverse impacts and bidirectional traffic.Public Domain Thrie-Beam Guardrail: Permitted for use, compatible for reverse impacts and bidirectional traffic.Public Domain Permanent Concrete: Accepted as per safety barrier standards.
- Downloads DownloadsQuadGuard® Product ManualPDF 9539KBDownloadDownloads DownloadsQuadGuard® Assembly ManualPDF 8127KBDownloadDownloads DownloadsQuadGuard® Visual Parts ListPDF 2662KBDownload
