Guardrail Rigid Transition
Guardrail Rigid Transition

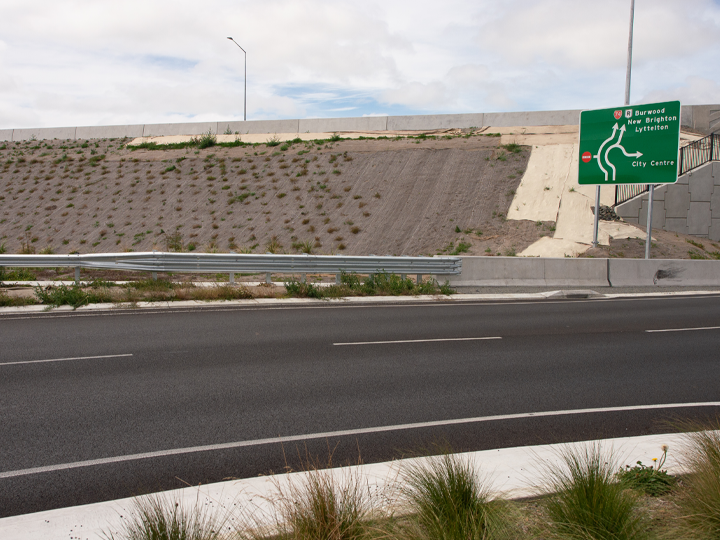

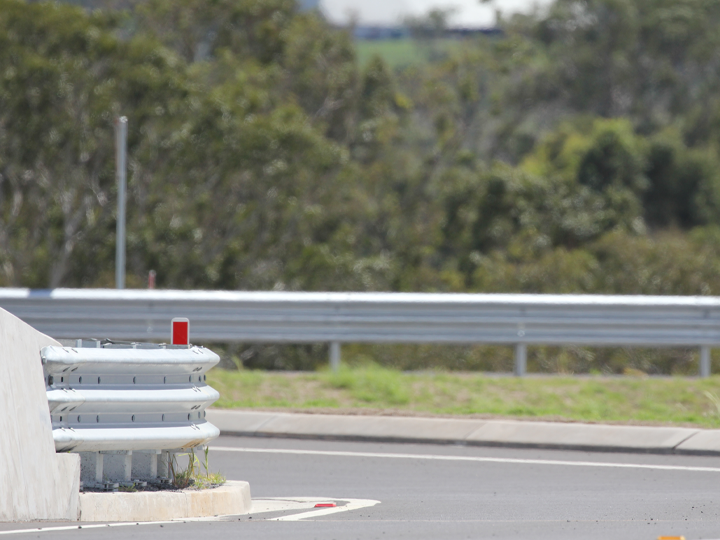

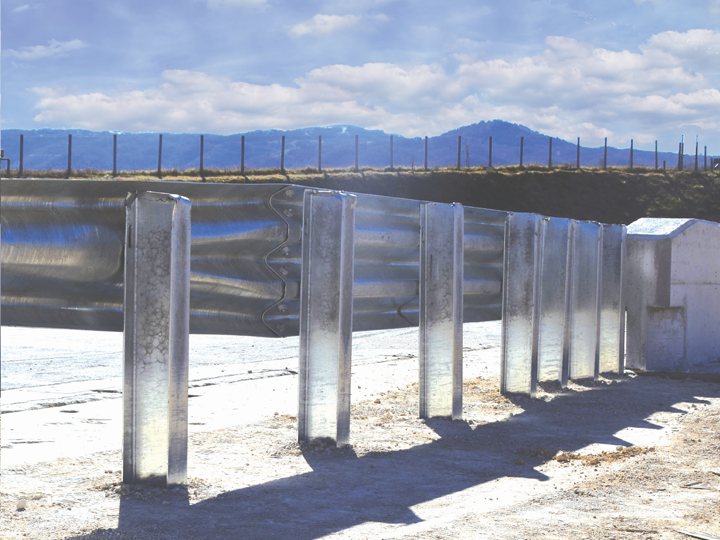

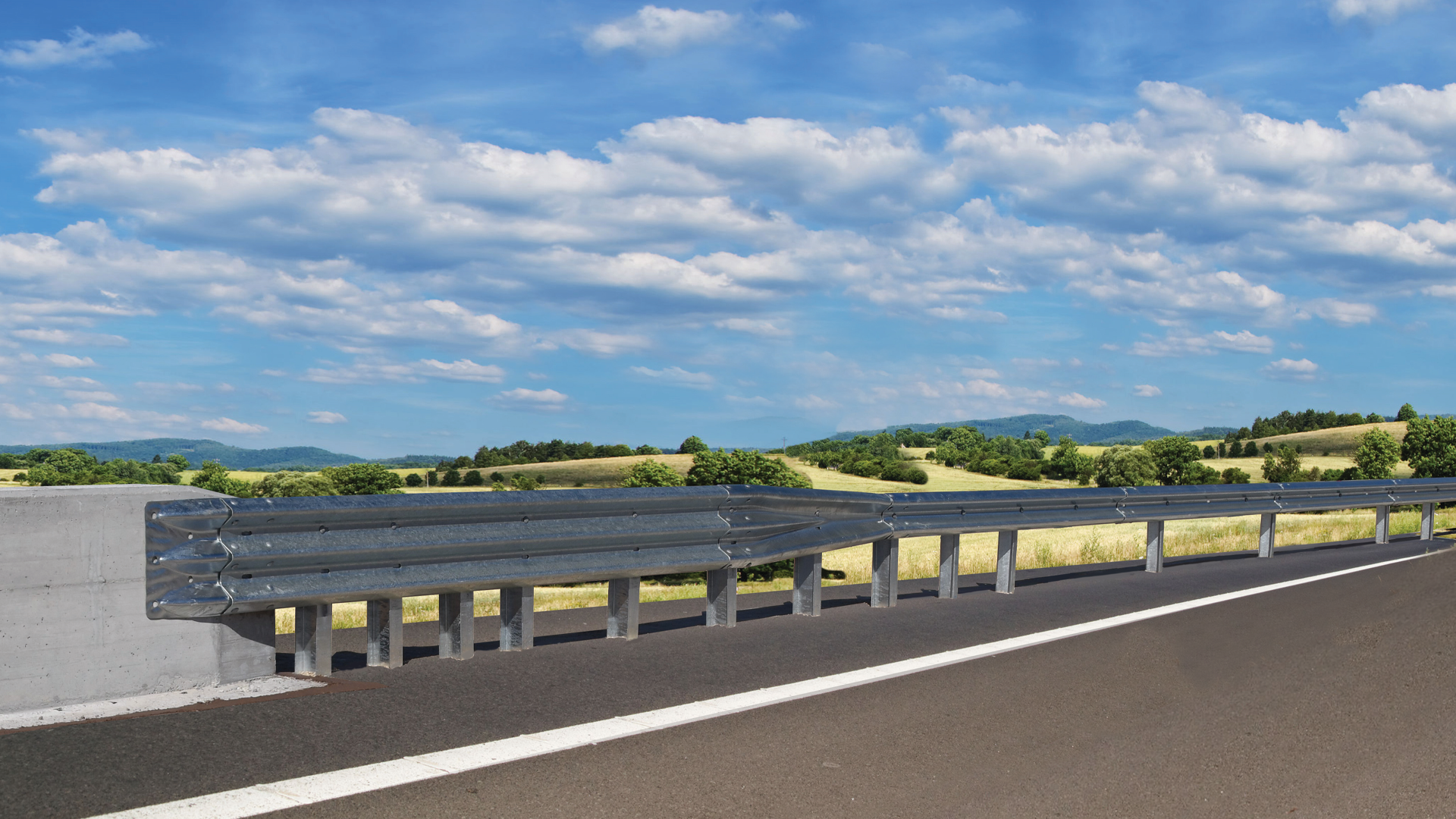

Guardrail Rigid Transitions provide secure, compliant connections between flexible W-Beam or Thrie-Beam guardrails and rigid concrete barriers. With Austroads transitioning to MASH-compliant systems, these legacy transitions may no longer be approved for new installations. For MASH TL3-compliant alternatives, consult your local Ingal Civil representative about the Ingal RBT system. Guardrail Rigid Transitions provide secure, compliant connections between flexible W-Beam or Thrie-Beam guardrails and rigid concrete barriers. With Austroads transitioning to MASH-compliant systems, these legacy transitions may no longer be approved for new installations. For MASH TL3-compliant alternatives, consult your local Ingal Civil representative about the Ingal RBT system.
NCHRP-350
Compliant
Nationwide Configuration
State-specific options available.
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe Guardrail Rigid Transitions ensure secure and compliant connections between semi-rigid W-Beam/Thriebeam barriers and more rigid concrete barriers. These transitions are essential for maintaining safety, especially at the critical points where flexible guardrails meet rigid concrete barriers.Description DescriptionFeatures• Stiffness Transition: These transitions facilitate a gradual increase in stiffness from the flexible guardrail to the rigid concrete barrier, minimizing the risk of vehicle impact hazards.• Safety Compliance: Fully compliant with AS/NZS 3845 and designed according to NCHRP-350 guidelines. Note that, in line with the Austroads transition to MASH-compliant systems, these transitions may no longer be approved for new installations in some jurisdictions. For MASH TL3-compliant transitions, refer to the Ingal® RBT system.• Compatibility: Engineered to integrate seamlessly with existing W-Beam and Thriebeam systems commonly used on bridges..Description DescriptionAcceptanceThese transition systems meet the requirements of AS/NZS 3845 and adhere to Austroads recommendations for safety barrier transitions. However, it's crucial to consult your local Ingal Civil representative to ensure compliance with the latest standards and regulations in your area.Description DescriptionCompliance and CertificationsAS/NZS 38450: Complies with road safety barrier standards.NCHRP-350: Designed following NCHRP-350 guidelines to ensure high safety and performance.
- Technical Specifications Technical SpecificationsSystem Specifications• Material:• Barrier Types:• Standard Lengths:High-strength steel, hot-dip galvanized in accordance with AS/NZS 4680Designed for W-Beam and Thriebeam barriers transitioning into rigid bridge barriersAvailable in standard lengths as specified in the technical drawingsTechnical Specifications Technical SpecificationsApproved VariantsR0720-07 Thriebeam Transition to Type F: Designed for use in New South Wales, ensuring compliance with local standards.R0720-07 Thriebeam and W-Beam Transition to Type F: Provides additional compatibility with W-Beam barriers in NSW.S4050 Sheet 0037: Installation Adjacent To Rigid Barriers, meeting South Australian requirements.0430-0765 Traffic Barriers and Balustrading Rail Barrier Transition: Specifically tailored for use in Western Australia, ensuring adherence to local standards and practices.Technical Specifications Technical SpecificationsApproved ConnectionsConcrete Barrier Compatibility: Approved for connection with rigid concrete barriers, with configurations detailed in the technical drawings for each state.Guardrail Systems: Compatible with both W-Beam and Thriebeam guardrails, ensuring a smooth transition to rigid bridge barriers.
