MashFlex
MashFlex

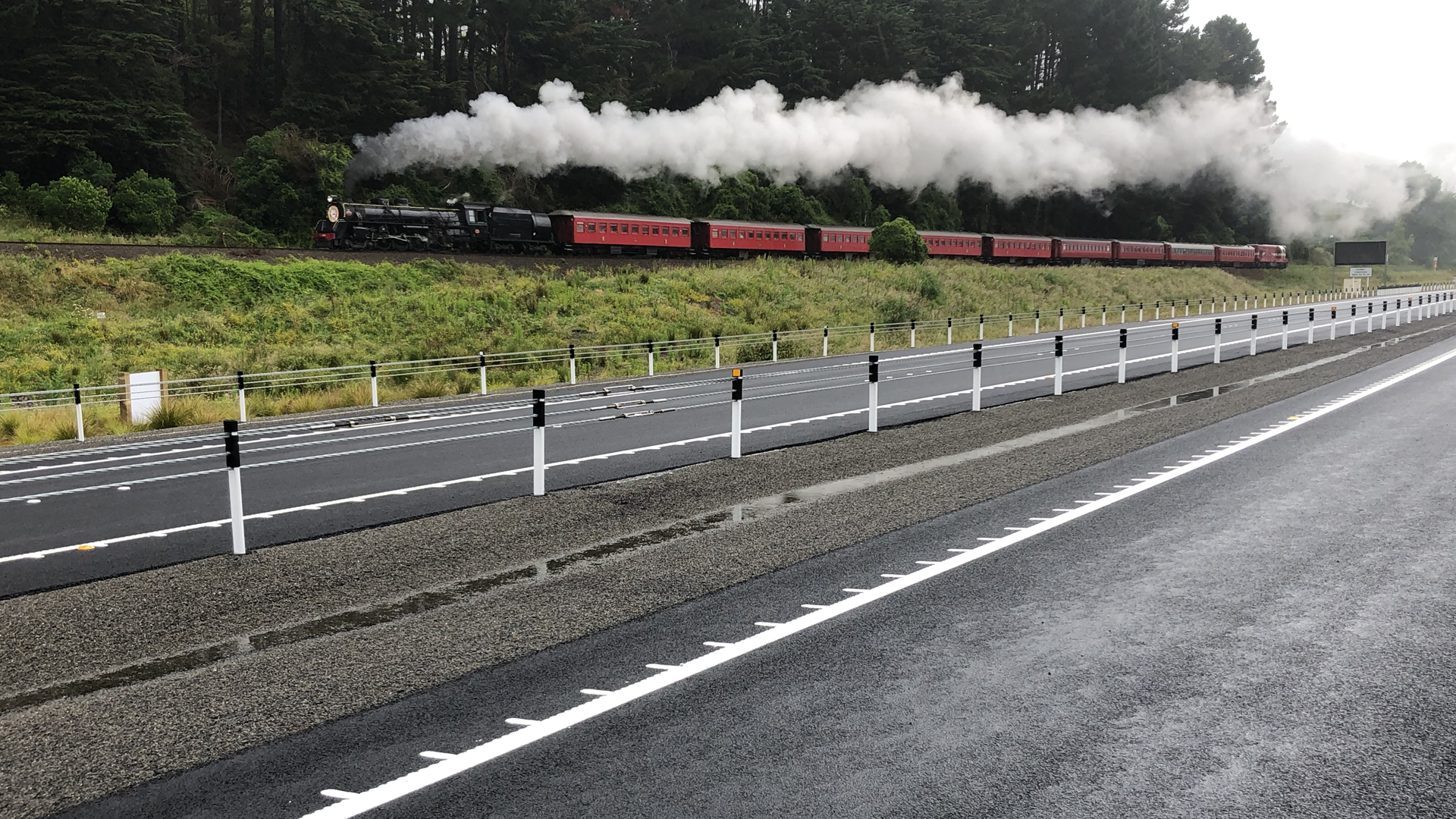

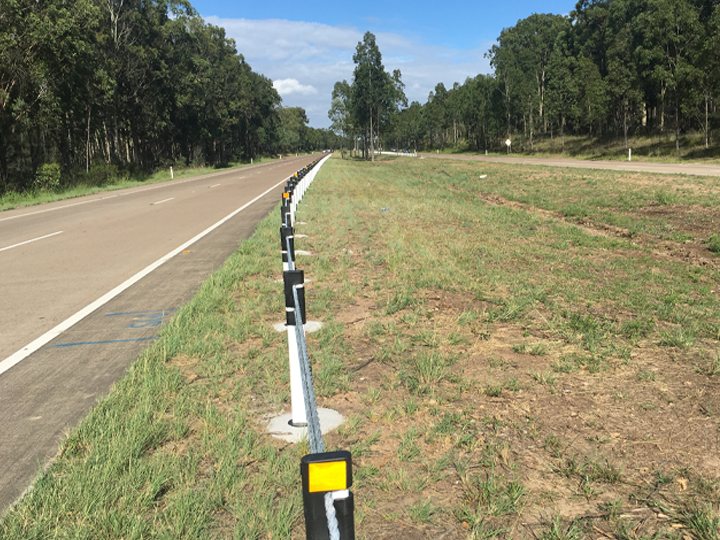

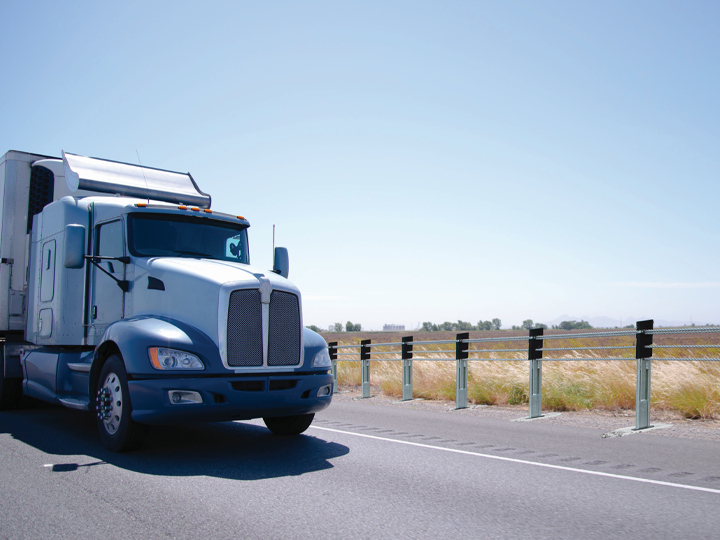

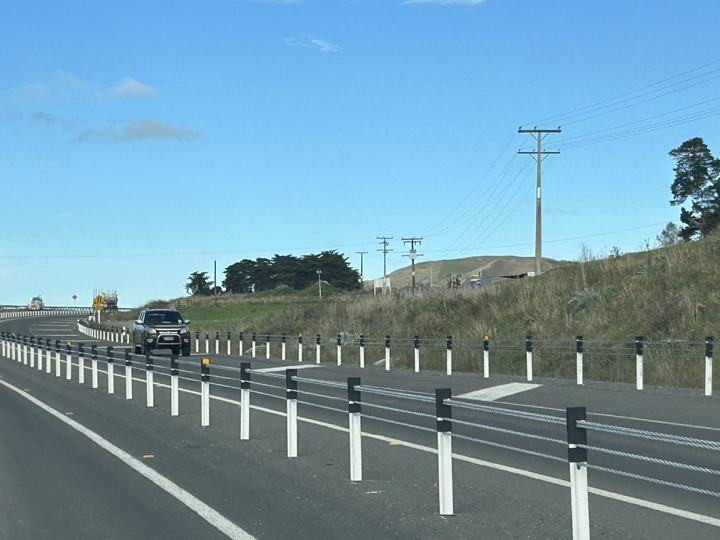

The MashFlex Wire Rope Safety Barrier provides MASH TL3 and MASH TL4 compliance while maintaining a minimal roadside footprint. Through the use of the proven Sigma Post which requires less concrete than all other systems, MashFlex is designed to provide class leading cost-effective protection. The MashFlex Wire Rope Safety Barrier provides MASH TL3 and MASH TL4 compliance while maintaining a minimal roadside footprint. Through the use of the proven Sigma Post which requires less concrete than all other systems, MashFlex is designed to provide class leading cost-effective protection.
MASH TL4/TL3
Compliant
2.5m or 3m
Post Spacing
1230mm
Post Height
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe MashFlex Wire Rope Safety Barrier provides MASH TL3 and MASH TL4 compliance while maintaining a minimal roadside footprint. Through the use of the proven Sigma Post which requires less concrete than all other systems, MashFlex is designed to provide class leading cost-effective protection. .Description DescriptionFeatures• Upgradable from Flexfence: Existing FlexFence installations may be upgraded to MashFlex. Existing runs of NCHRP-350 compliant TL3 or TL4 Flexfence can be upgraded while reusing the existing cables, post footings and anchor blocks.• Shallow Post Footing: with a Standard Post Footing of just 300mm x 600mm the MashFlex Post requires just 0.04 m3 of Concrete per Post. This is up to 50% less concrete than alternative systems.• Driven Post Footing: In locations where suitable Ground conditions exist, MashFlex Intermediate Posts may be installed using a Driven Sleeve.• Narrow System Width: With the slimline Sigma Profile, the MashFlex Post conserves valuable formation width.• Consideration for Utilities & Services: MashFlex is available with Surface Mounted Posts. Engineered Ground Beam designs are available to suit Surface Mounted Posts.• Suitable for Reduced Deflection: Deflection values for MashFlex may be reduced by decreasing Post Centres below the standard 3m.• Multiple Speed Environments: MashFlex is ideally suited to all speed environments up to and including MASH TL-4.• Verge or Median Application: MashFlex is ideal for Verge and Median applications in either single-sided or double-sided layouts, offering effective containment for bidirectional traffic with a streamlined design.• Rapid Installation: With fewer parts and less concrete required, MashFlex can be installed quickly, reducing labour costs and time on site.• Multiple Anchor Footing Options: The MashFlex Wire Rope Safety Barrier is available with a variety of Anchor Block designs. These include a standard or default design, a block for poor soil conditions and a block for spacial limitations.Description DescriptionAcceptanceThe MashFlex Wire Rope Barrier is fully compliant with AS/NZS 3845 has been accepted by the Austroads Safety Barrier Assessment Panel. It is trusted for a wide range of road safety applications.Description DescriptionPerformance MetricsMASH TL3 Compliance: Contains and redirects a 2,270kg vehicle at 100 km/h, with a maximum deflection of 2.68m.MASH TL4 Compliance: Tested to redirect a 10,000kg truck at 90 km/h, achieving a working width of 3.8m.
- Technical Specifications Technical SpecificationsSystem Specifications• Standard Length MashFlex Posts:• Top Wire Height Above Ground:• Lower Wire Height Above Ground:• MashFlex Post Height Above Ground• Post Footing:• Post Spacing:• MASH TL3 Crash Test Deflection:• MASH TL3 Crash Test Deflection:• MASH TL4 Crash Test Deflection:1,230mm800mm570mm880mm (Without Cap)300mm x 600mm2.5m or 3.0m2.19m at 2.5m Post Spacing2.68m at 3m Post Spacing2.80m at 3m Post SpacingTechnical Specifications Technical SpecificationsApproved VariantsBaseplate Installation: For areas with underground utilities, requiring concrete footing.Driven Post Sleeve: For use in soil conditions that meet AASHTO standards.Technical Specifications Technical SpecificationsEnd TreatmentsMashFlex Terminal: Non-release, gating terminal that requires an 18.5m x 6m run-out area.
- Downloads DownloadsIngal Malaysia Product CataloguePDF 4041KBDownloadDownloads DownloadsFlexfence Tensioner Product ManualPDF 2149KBDownloadDownloads DownloadsFlexfence Swaging Product ManualPDF 809KBDownload
