TREND Median Terminal
TREND Median Terminal

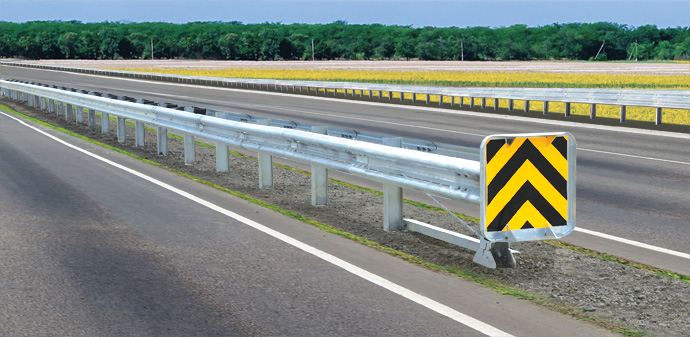

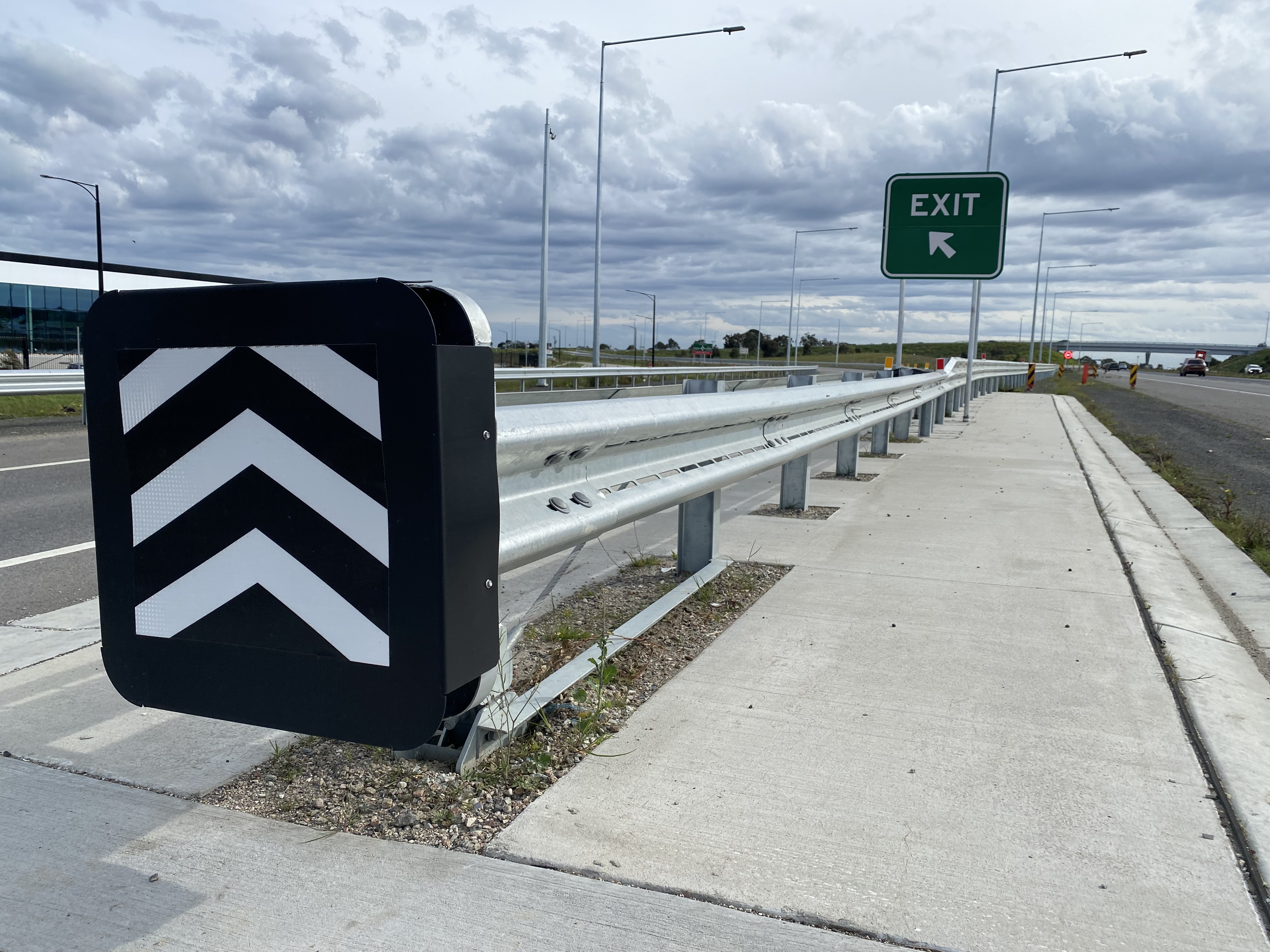

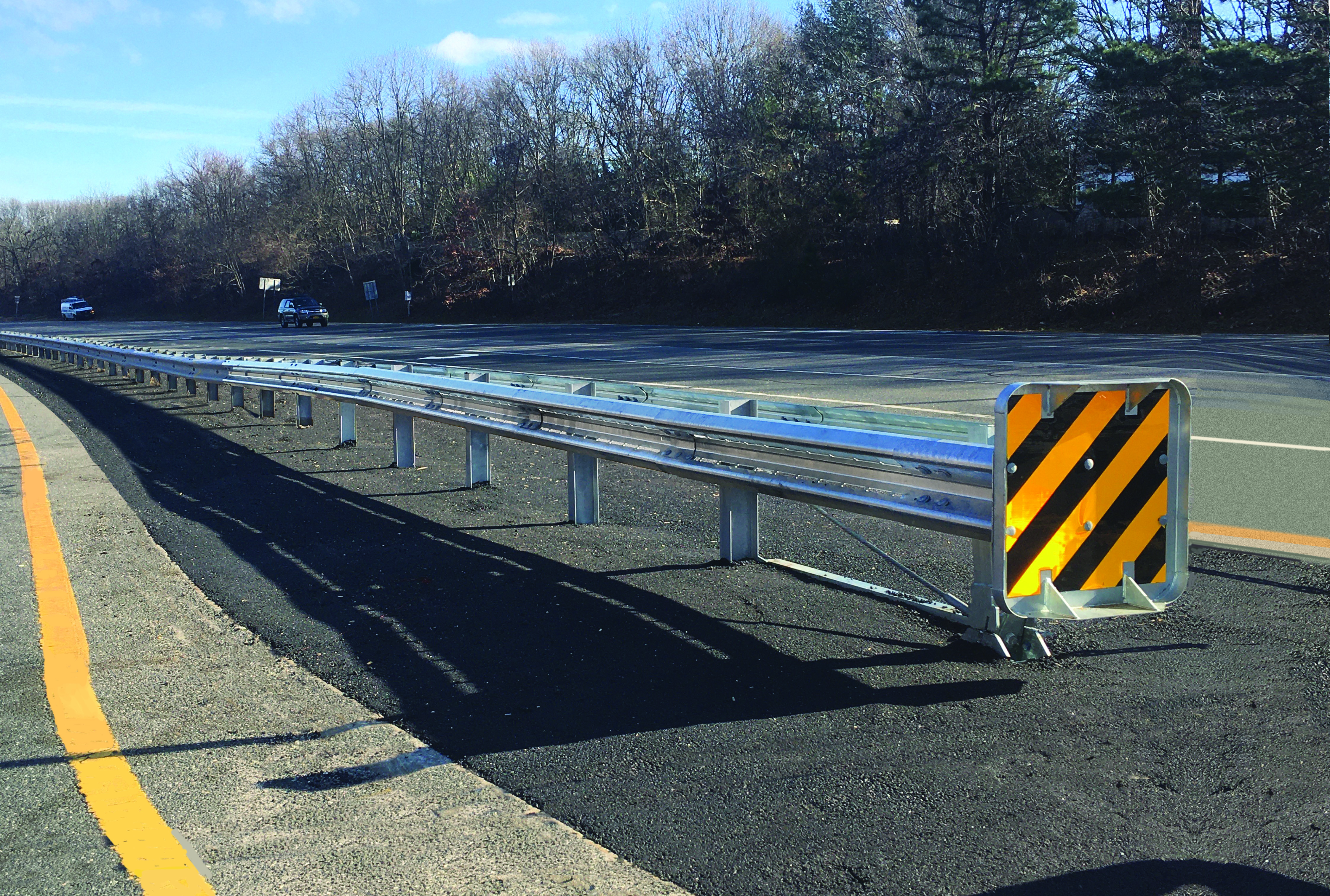

The TREND Median Terminal is a bi directional, energy absorbing MASH TL3 compliant median terminal designed for safe redirection from either direction of travel. With a compact 10.48m system length and in ground posts, it provides proven TL3 containment for bidirectional traffic in median environments.
Product Information
Product Information
Product Information Product Information
- Description DescriptionDescriptionThe TREND Median Terminal features a unique double sided impact head with integrated shearing pins and a W-Beam rail system that manages and absorbs impact energy from either direction of travel. During an impact, the rail extrudes through the head in a controlled manner, reducing vehicle deceleration forces and improving occupant safety while maintaining effective redirection for bidirectional traffic.Its compact footprint and narrow 737mm head width minimise intrusion into the median or verge space and help reduce nuisance impacts.Alternate footing options are available to suit locations with underground services or constrained ground conditions, making the TREND Median Terminal suitable for a wide range of median and verge applications.Features FeaturesFeatures• Crash tested and approved to MASH TL3• Accepted by the Austroads Safety Barrier Assessment Panel (ASBAP)• Designed in accordance with AS/NZS 3845.1 Road Safety Barrier Systems & Devices• Bi-directional performance for verge and median installations• Compact 10.48m system lengthwith in ground posts• Narrow 737mm impact headreduces median space requirements and nuisance impacts• Compatible with all Ezy-Guard and MASH transitions• Alternate footing options available to suit ground conditions
- System Specifications System SpecificationsSystem Specifications• Rail Height Above Ground:• Impact Head Width:• System Length TL3:• Post Spacing:• Length of Need:787mm737mm10.48m1905mmBegins at Post #3Approved Variants Approved VariantsApproved Variants• Concrete foundation option to reduce first post embedmentApproved Connections Approved Connections
| Title | Type | Size | |
| Trend Median Terminal Product Manual v.0225 | 7353 KB | Download | |
| TREND Median Data Sheet v.0823 | 284 KB | Download |
