Safence TL4 Wire Rope Safety Barrier
Safence TL4 Wire Rope Safety Barrier

The Safence WRSB, assessed to NCHRP-350, is no longer approved for new state highway installations. For MASH-compliant barriers, consider the MashFlex system. Safence's design is popular for median and verge applications due to its effective TL4 containment and easy installation. The Safence WRSB, assessed to NCHRP-350, is no longer approved for new state highway installations. For MASH-compliant barriers, consider the MashFlex system. Safence's design is popular for median and verge applications due to its effective TL4 containment and easy installation.

Product Information

Product Information Product Information

Description Description
Please note, as this is an NCHRP-350 system, the Safence WRSB system is no longer approved for new installations on the state highway network. For a MASH compliant wire rope safety barrier, please refer to the MashFlex system.

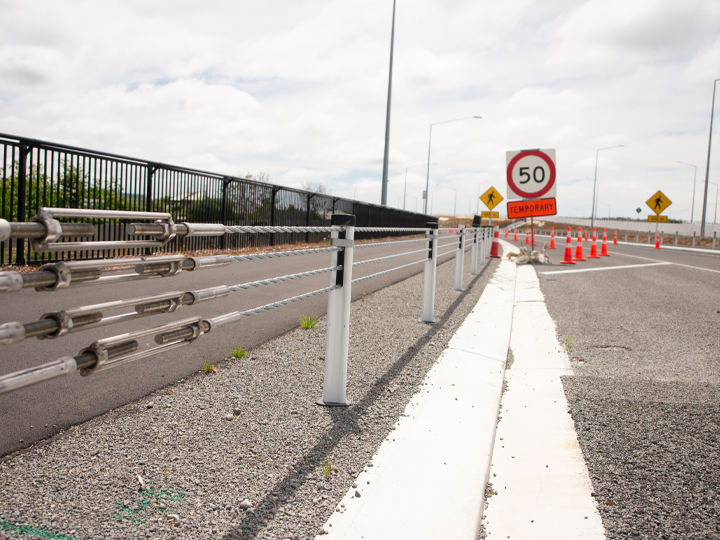

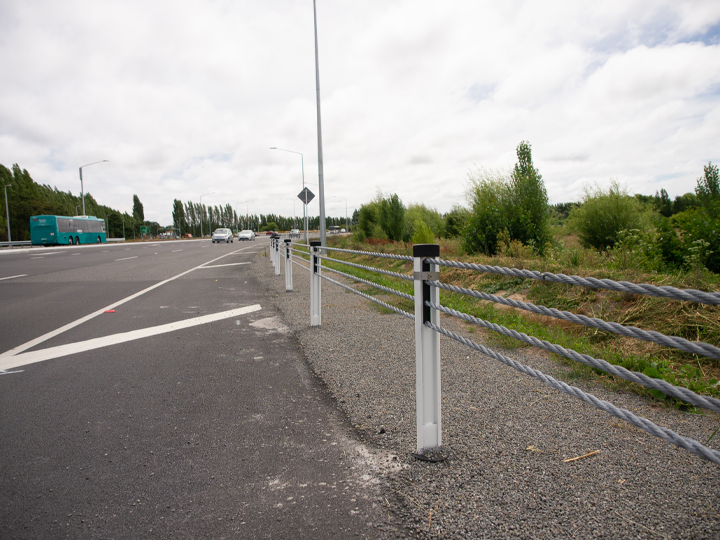

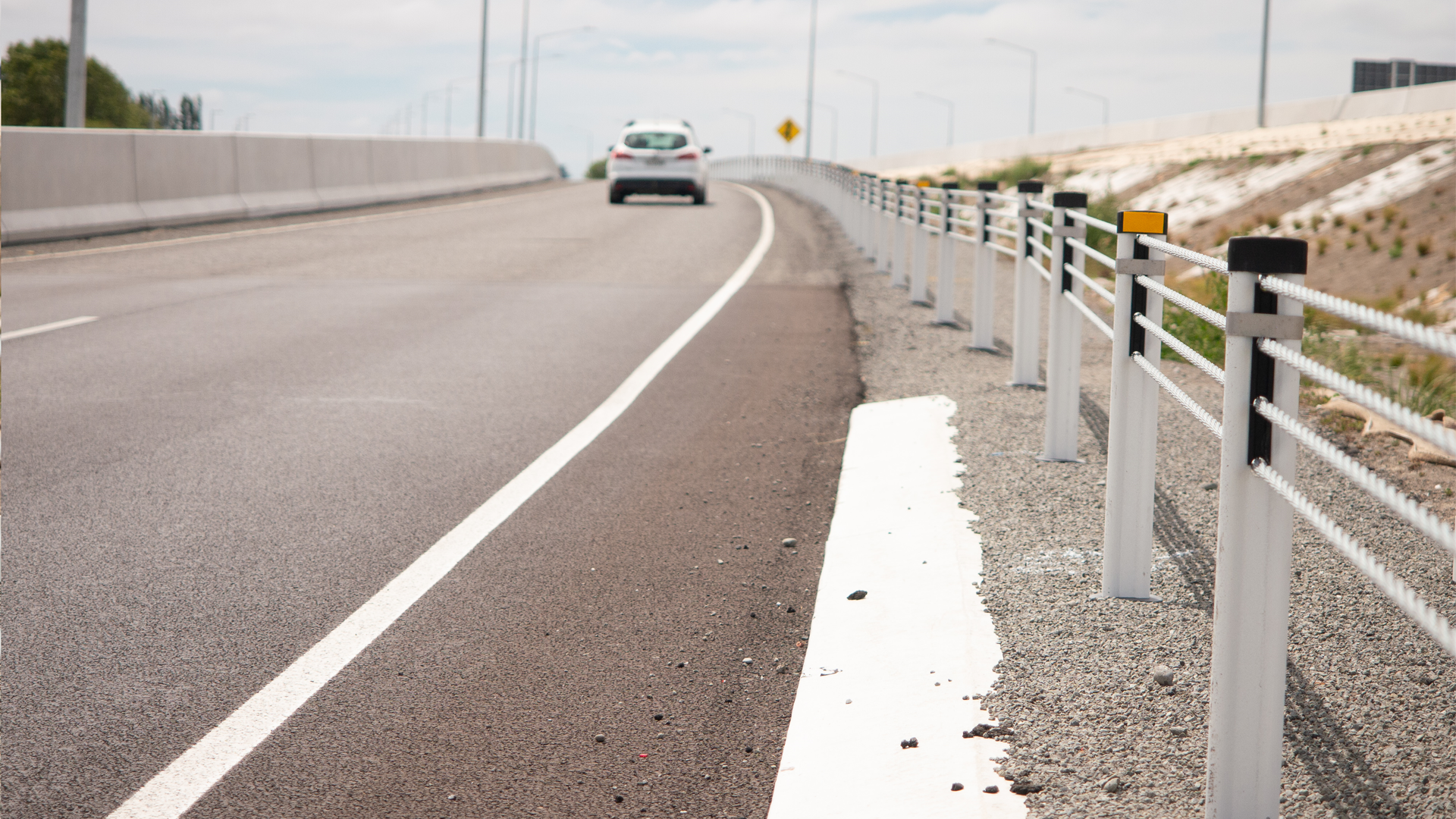

The superior design and clean lines of Safence Wire Rope Safety Barrier (WRSB) has seen it become the road safety industry’s preferred wire rope barrier. Safence has gained popularity in median applications, for the prevention of cross-median accidents, and verge applications where the system has proven TL4 containment capabilities with some of the lowest occupant impact severities for any type of safety barrier.
The straight alignment of the ropes allows for easy installation and tensioning. Post footings can be a traditional concrete footing or the newly introduced Safence Driven Post Sleeve. The recent innovation offers huge savings in concrete and installation time, with minimal spoil removal. The driven sleeve foundation was used on the Huntly Bypass, offering huge savings.
Once the anchors and footings are poured, the ropes are cut to length, stainless steel end fittings are machine swaged and the ropes are tensioned.
Safence TL4 has been assessed in accordance with NCHRP Report 350 Test Level 4 (TL4). The TL4 heavy vehicle impacts are performed with a 2,000kg pick-up truck travelling at 100km/h and 25° impact angle, and an 8,000kg rigid truck travelling at 80km/h and 15°.

Description Description
Features
Low-Profile Design: Reduces visual bulk, ideal for areas where aesthetics are a priority.
High-Strength Cable: Uses the same galvanized wire rope as highway barriers for durability and impact resistance.
Surface Mounted: No need for drilling into or connecting to supporting columns, simplifying installation.
AS/NZS 1170.1 Compliant: Exceeds impact load requirements for light traffic areas.
Donec eleifend
Viverra odio

Description Description
Acceptance
Cable Buffa™ is fully compliant with AS/NZS 1170.1 standards for light traffic areas, ensuring safety and performance in car parks.

Description Description
Compliance and Certifications
Compliant with AS/NZS 1170.1 for light traffic areas.
Proven to withstand over twice the required impact loads.
Downloads Downloads
Safence TL4 Product Manual
PDF 2667KB
Download

Downloads Downloads
Safence Driven Sleeve Data Sheet
PDF 312KB
Download

Downloads Downloads
Safence TL4 Data Sheet
PDF 286KB
Download
