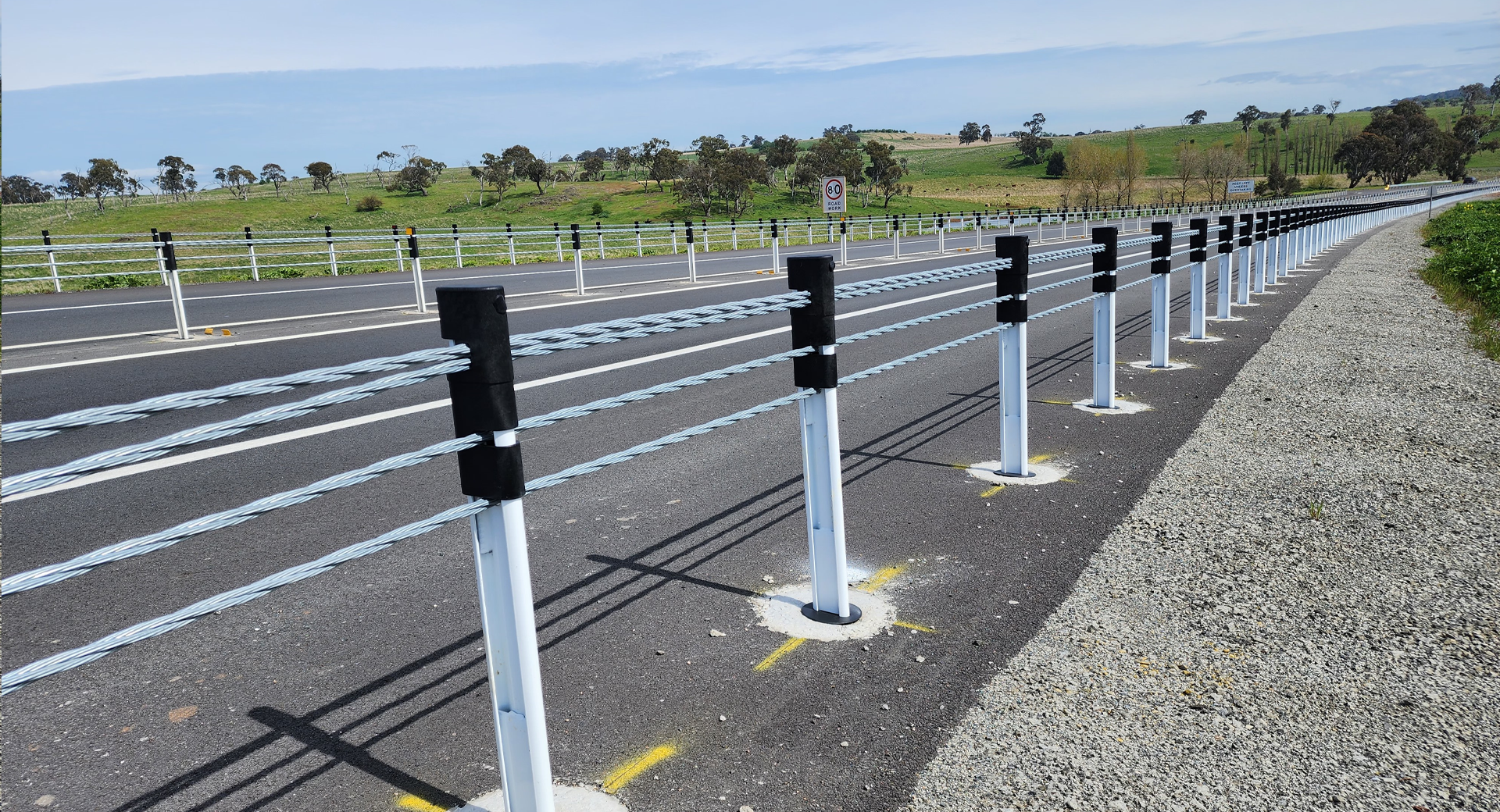

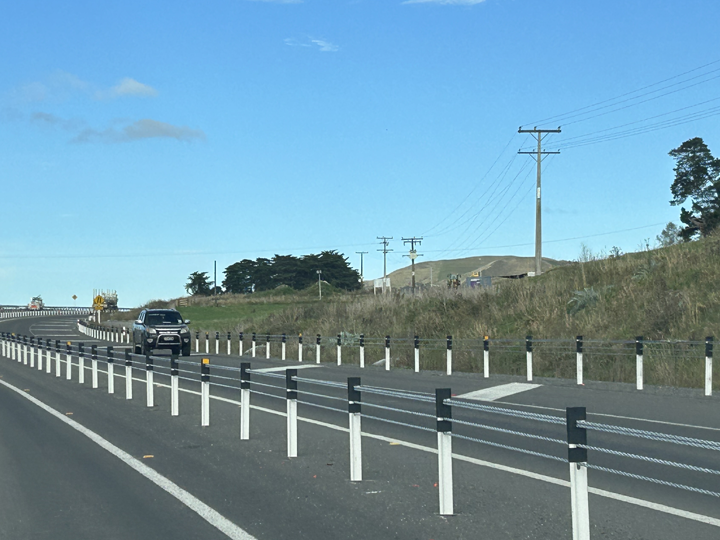

The MashFlex Wire Rope Safety Barrier is a next-generation safety system that provides exceptional motorist protection. Designed for high containment and tested to MASH TL3 and TL4 standards, it offers superior performance in redirecting errant vehicles while being cost-effective and quick to install. Its robust steel wire design makes it suitable for both light and heavy vehicle impacts, ensuring reliable safety in high-risk areas. The MashFlex Wire Rope Safety Barrier is a next-generation safety system that provides exceptional motorist protection. Designed for high containment and tested to MASH TL3 and TL4 standards, it offers superior performance in redirecting errant vehicles while being cost-effective and quick to install. Its robust steel wire design makes it suitable for both light and heavy vehicle impacts, ensuring reliable safety in high-risk areas.
MASH TL4/TL3
Compliant
165.5kN
Ultimate Tensile Strength
1230mm
Post Height
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe MashFlex Wire Rope Safety Barrier is a next-generation safety system that provides exceptional motorist protection. Designed for high containment and tested to MASH TL3 and TL4 standards, it offers superior performance in redirecting errant vehicles while being cost-effective and quick to install. Its robust steel wire design makes it suitable for both light and heavy vehicle impacts, ensuring reliable safety in high-risk areas.Description DescriptionFeaturesMASH TL4 Containment: Capable of redirecting a 10,000kg truck at 90 km/h and 15°, providing superior safety on high-speed roads.Dynamic Deflection Control: Flexible rope design reduces vehicle damage and effectively prevents crashes into roadside hazards.Steel Wire Rope Strength: Manufactured with high-strength steel wire rope (ultimate tensile strength of 165.5kN) to withstand significant impacts.Efficient Installation: The streamlined design of MashFlex allows for quick deployment, minimizing disruption to road operations.Cost-Efficiency: Provides a cost-effective solution by offering more barrier length per dollar, reducing total project costs.Description DescriptionAcceptanceThe MashFlex Wire Rope Safety Barrier is fully compliant with MASH TL3 and TL4 and recommended for acceptance by the Austroads Safety Barrier Assessment Panel. It is approved for use at speeds up to 100 km/h.Description DescriptionCompliance and CertificationsAustroads Approval: Accepted by the Austroads Safety Barrier Assessment Panel, ensuring it meets technical requirements for road safety barriers.MASH TL3 Compliance: Contains and redirects a 2,270kg vehicle at 100 km/h, with a maximum deflection of 2.68m.MASH TL4 Compliance: Tested to redirect a 10,000kg truck at 90 km/h, achieving a working width of 3.8m.
- Tech Specs Tech SpecsSteel Wire Rope MassUltimate Tensile StrengthPost HeightPost SpacingDynamic Deflection (MASH TL3)Dynamic Deflection (MASH TL3)Dynamic Deflection (MASH TL4)Working WidthWire Rope Diameter1.21kg/m165.5kN1230mm2.5m - 3.0m2.5m post spacing: 2.19m3.0m post spacing: 2.68m2.8m3.8mØ19mm (3 strands of 7 wires)Tech Specs Tech SpecsApproved VariantsBaseplate Installation: For areas with underground utilities or space constraints, requiring a 12m concrete footing.Driven Post Sleeve: For use in soil conditions that meet AASHTO standards.Tech Specs Tech SpecsApproved ConnectionsMashFlex Terminal: Non-release, gating terminal that requires an 18.5m x 6m run-out area.
- Downloads DownloadsIngal Malaysia Product CataloguePDF 4041KBDownloadDownloads DownloadsFlexfence Tensioner Product ManualPDF 2149KBDownloadDownloads DownloadsFlexfence Swaging Product ManualPDF 809KBDownload
