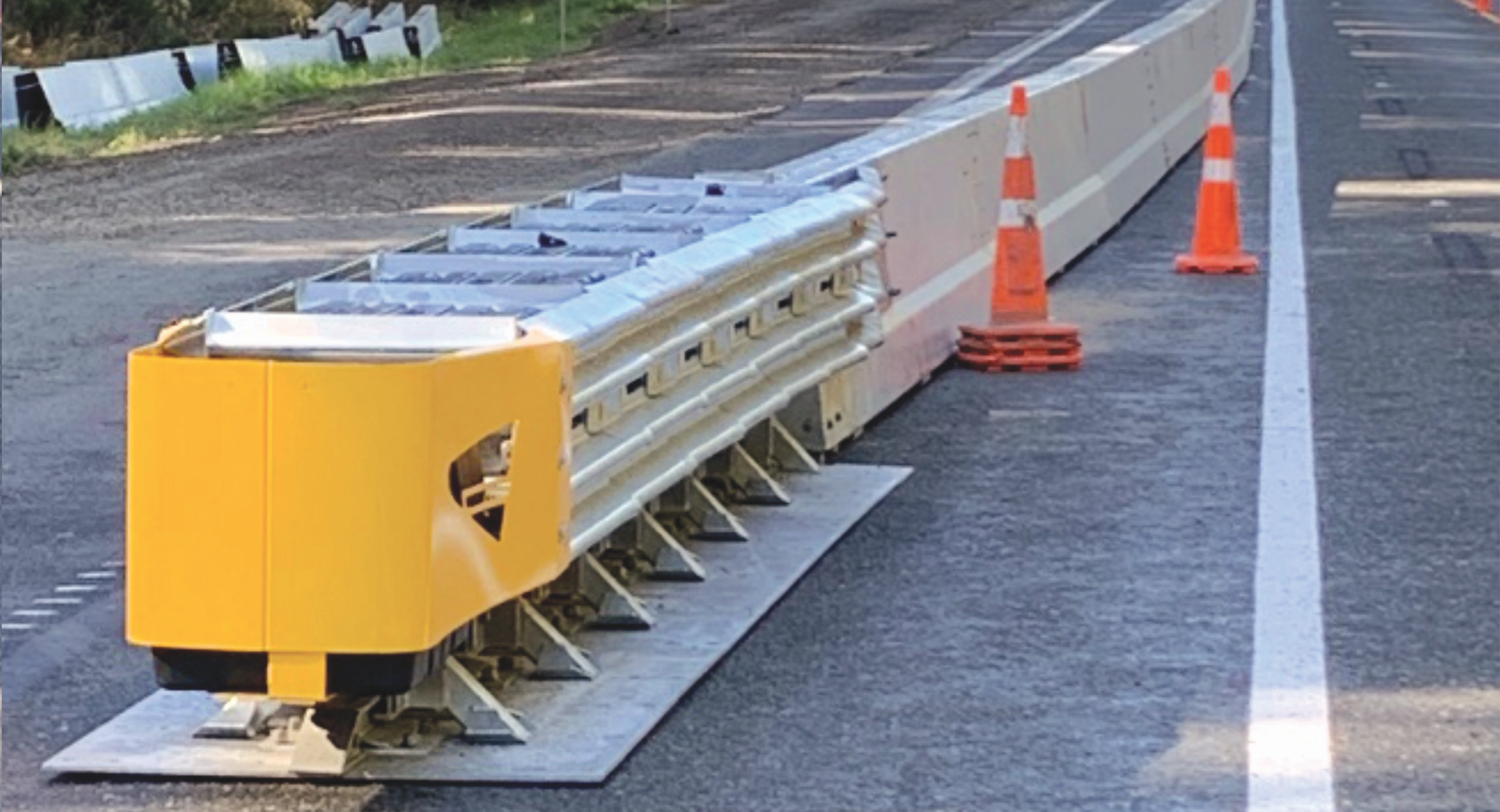

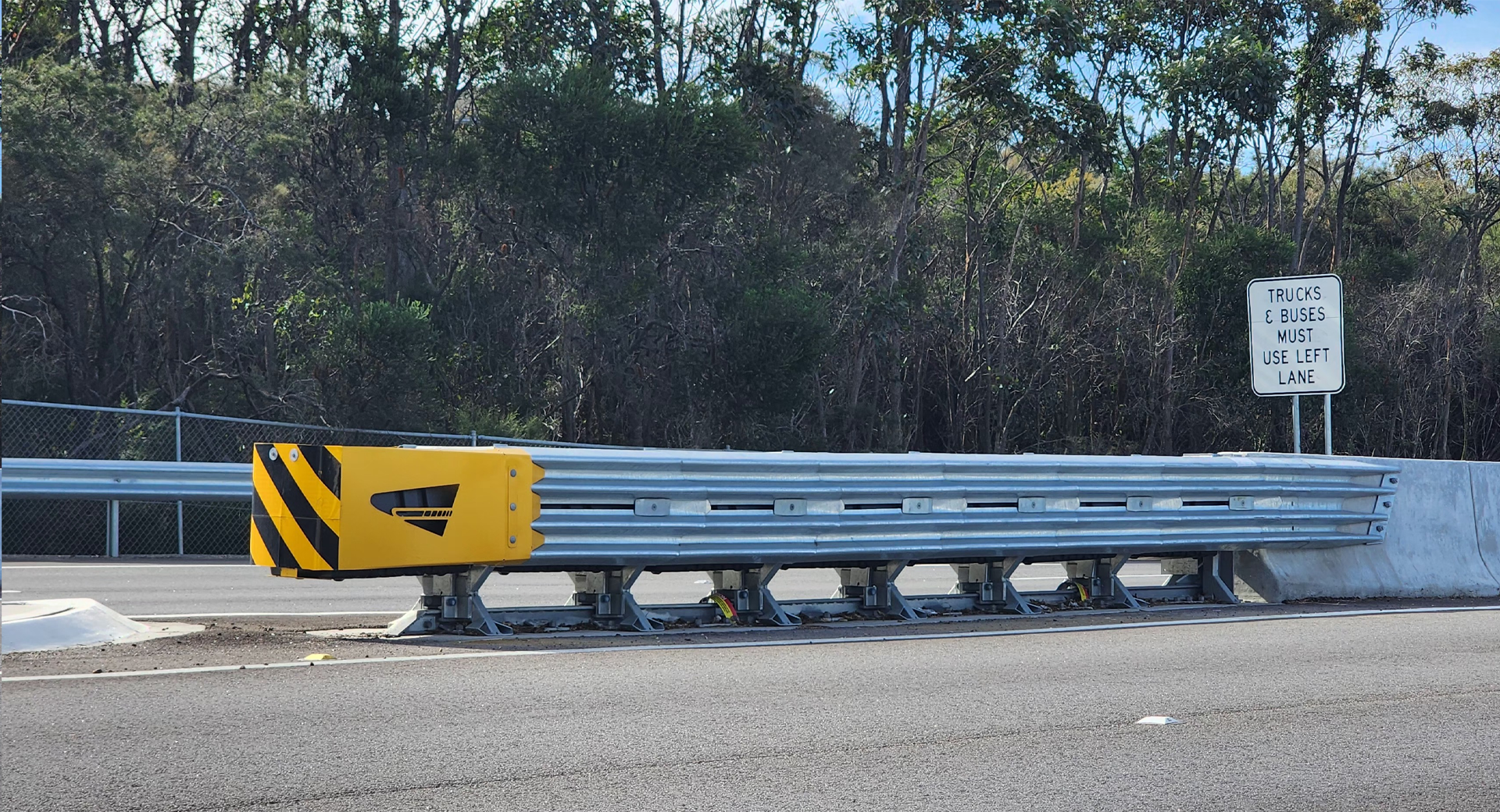

The QuadGuard® M10 CZ is a portable, redirective, non-gating crash cushion designed for temporary installations and to protect hazards up to 610 mm wide. Fully compliant with MASH TL2 and TL3 standards, it ensures superior energy absorption and vehicle redirection, making it suitable for both light cars and heavy vehicles in construction zones. The QuadGuard® M10 CZ is a portable, redirective, non-gating crash cushion designed for temporary installations and to protect hazards up to 610 mm wide. Fully compliant with MASH TL2 and TL3 standards, it ensures superior energy absorption and vehicle redirection, making it suitable for both light cars and heavy vehicles in construction zones.
MASH
TL3/TL2
TL3/TL2
Compliant
Portable
Installation
Installation
Minimizing Road Closure Times
Asphalt
Anchoring
Anchoring
Minimal Maintenance
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe QuadGuard® M10 CZ is a portable version of the QuadGuard® M10 crash cushion, engineered for use in temporary applications such as construction zones. Featuring energyabsorbing cartridges housed within a Quad-Beam™ steel framework, it provides exceptional impact protection and redirection for vehicles. The system is designed to be anchored in asphalt, providing flexibility for a variety of road surfaces and temporary installations.Description DescriptionFeaturesMASH TL2 and TL3 Compliance: Certified for impacts at 70 km/h (TL2) and 100 km/h (TL3), offering versatile protection for various vehicle types.Energy-Absorbing Cartridges: Staged cartridges designed to handle both light vehicles and heavy trucks, minimizing damage during collisions.Portable Design: Ideal for short-term installations in construction zones, where flexibility and quick setup are critical.Telescoping Energy Absorption: The system telescopes upon impact, absorbing energy efficiently and preventing severe damage to the vehicle and structure.Asphalt Anchoring Capability: Capable of being securely anchored into asphalt surfaces, making it ideal for temporary applications.Durable Construction: The steel frame and reinforced nose provide long-lasting performance, even in harsh conditions.Description DescriptionAcceptanceThe QuadGuard® M10 CZ is fully compliant with MASH TL2 and TL3 standards and has been approved for use by the Federal Highway Administration (FHWA). It is recommended for acceptance by the Austroads Safety Barrier Assessment Panel for temporary installations.Description DescriptionCompliance and CertificationsAustroads Approval: Recommended for acceptance in compliance with AS/NZS 3845 standardsMASH TL2 Certified: Tested at impact speeds up to 70 km/h.MASH TL3 Certified: Successfully tested at impact speeds up to 100 km/h.Performance Metrics: Proven energy absorption and vehicle redirection under MASH criteria for various vehicle types.
- Tech Specs Tech SpecsSystem WidthSystem LengthEnergy AbsorptionSystem WeightPoint of Redirection0.61 m for the QuadGuard® M10 CZ standard4.0 m for MASH TL2 configuration, 6.71 m for MASH TL3 configurationDual-stage cartridge system handles impacts from light cars to heavy trucksDurable steel construction with energy-absorbing cartridges and Quad-Beam™ panelsFully redirective at both leading and trailing endsTech Specs Tech SpecsApproved VariantsQuadGuard® M10 CZ Standard: Designed to protect hazards up to 610 mm wide, optimized for temporary installations.Designed for relocatable or temporary installations with pinned steel plates or driveable pile anchors.Tech Specs Tech SpecsApproved ConnectionsJJ Hooks 6 Metre Safety Barrier, Rebloc 80SAH_12_8B,T-Lok MASH Safety Barrier, T-Lok Rubber Safety Barrier, HighwayGuard LDS Safety Barrier, HighwayGuard Safety Barrier, ZONEGUARD Safety Barrier, HV2 Hybrid Safety Barrier, BG800 MDS, DEFENDER 100 FS, DEFENDER 100 LDS, HighwayGuard MDS, ZONEGUARD MDS, BG800 LDS, DEFENDER 70Public Domain W-Beam Guardrail: Permitted for use, compatible for reverse impacts and bidirectional traffic.Public Domain Thrie-Beam Guardrail: Permitted for use, compatible for reverse impacts and bidirectional traffic.Public Domain Permanent Concrete: Accepted as per safety barrier standards.
- Downloads DownloadsQuadGuard® M10 CZ MASH Manual SupplementPDF 9296KBDownload
