Ingal Motorcyclist Protection Rail (MPR)
Ingal Motorcyclist Protection Rail (MPR)

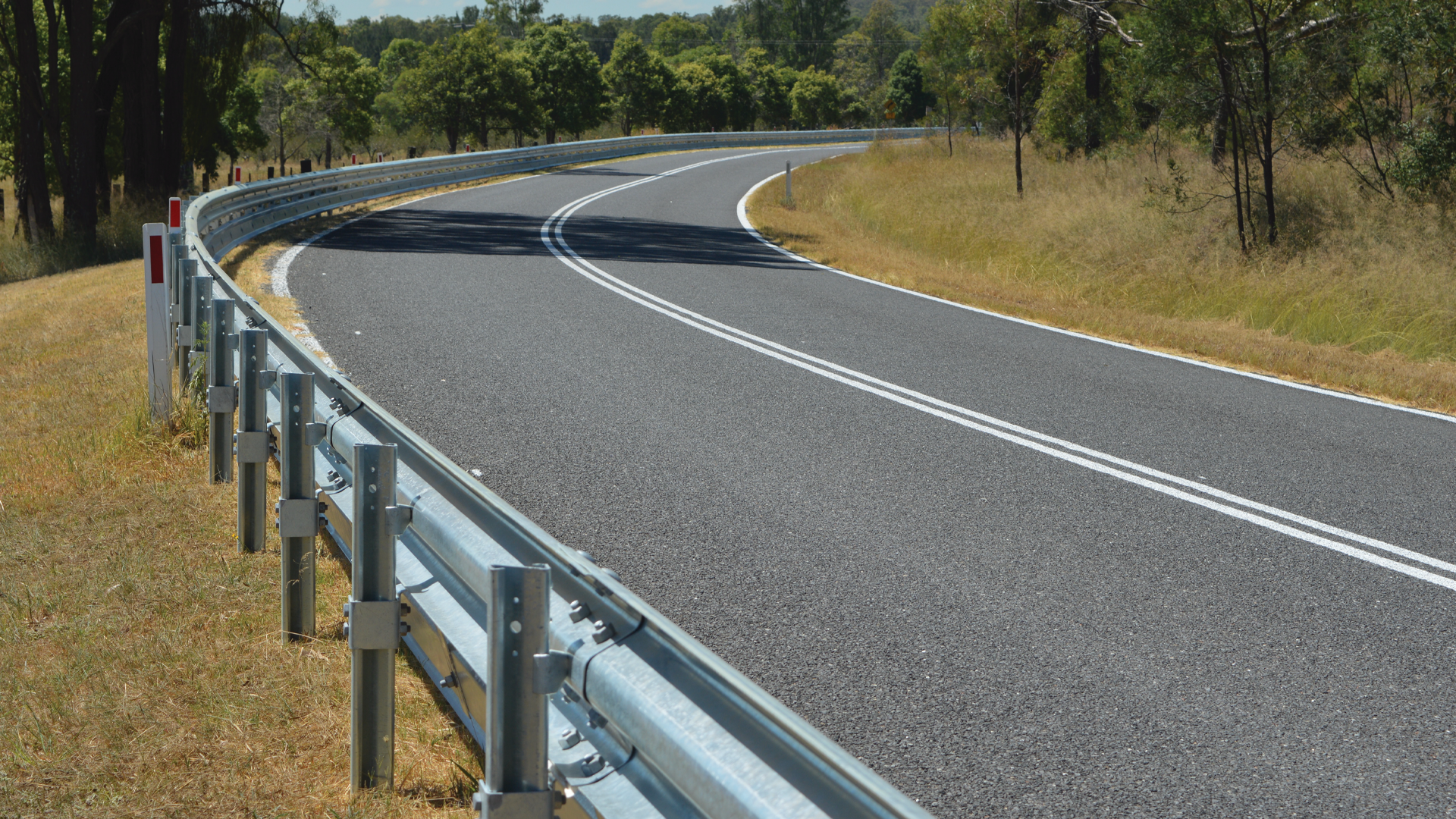

The Ingal Motorcyclist Protection Rail (MPR) provides the highest possible level of protection to motorcyclists by providing underride protection with a spring-mounted rail system. Ingal MPR is designed to reduce the impact severity for motorcyclists when impacting an intermediate guardrail barrier.. The Ingal Motorcyclist Protection Rail (MPR) provides the highest possible level of protection to motorcyclists by providing underride protection with a spring-mounted rail system. Ingal MPR is designed to reduce the impact severity for motorcyclists when impacting an intermediate guardrail barrier.
4000mm
Ingal MPR Rail Length
60mm
Rail Height Above Ground
4.65kg / metre
Ingal MPR System Mass
Product Information
Product Information
Product Information Product Information

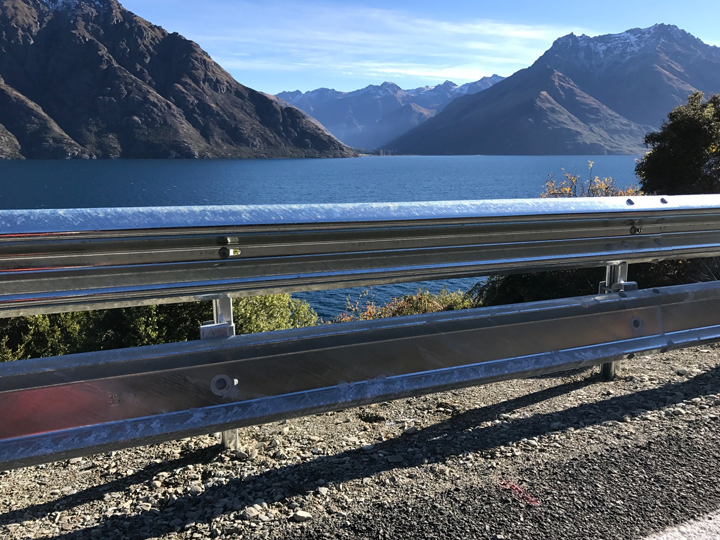

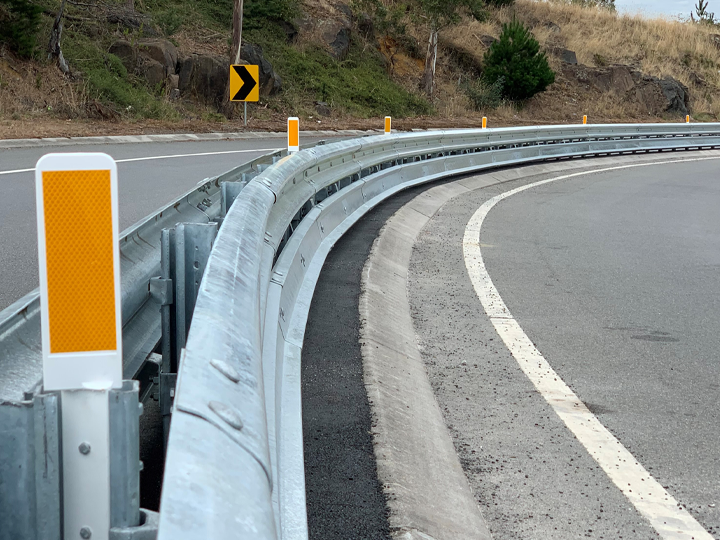

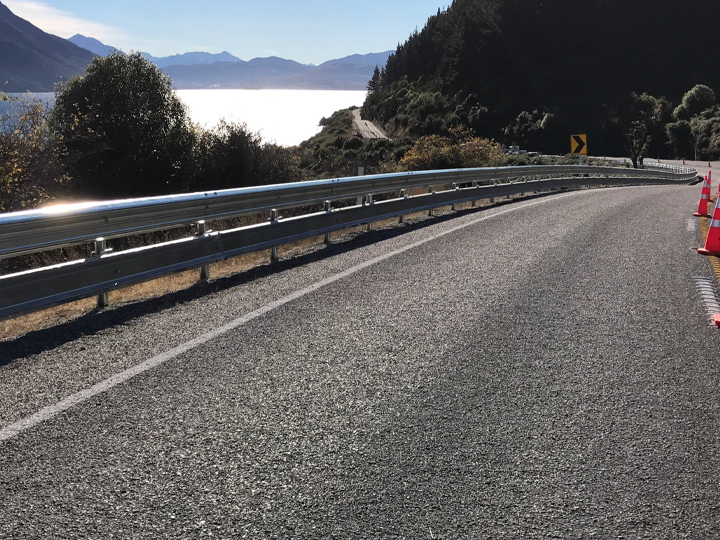

- Description DescriptionIngal Motorcyclist Protection Rail (MPR) provides the highest possible level of protection to motorcyclists by providing underride protection with a spring-mounted rail system. Ingal MPR is designed to reduce the impact severity for motorcyclists when impacting an intermediate guardrail barrier. Ingal MPR may be installed on all Ezy-Guard systems in addition to all Public Domain Intermediate W-Beam Guardrail systems.Description DescriptionFeatures• Connection to Intermediate Barrier systems using Z-Posts, C-Posts and U-Posts: Ingal MPR may be installed on all Ezy-Guard systems, Intermediate W-can youBeam systems using C-Posts or U Posts and in some instances may be installed on Thriebeam systems featuring Modified/Notched Blocks.• Motorcyclist Safety: Ingal MPR includes an under riding rail mounted on a spring bracket, which deflects upon impact, absorbing energy and redirecting the motorcyclist away from rigid posts and other roadside hazards.• Flexible Installation: The symmetric mounting bracket allows for easy installation on both sides of the carriageway, ensuring consistent rail height even on uneven terrain. This system does not require modifications to existing vehicle barriers.• Cost-Efficiency: The system is designed with a minimal number of components, making it both cost-effective and easy to install, while maintaining its protective functionality.• Durable Design: The Ingal MPR is made from hot-rolled steel and hot-dip galvanized in accordance with AS/NZS 4680 standards, ensuring long life in various weather conditions.• EN-1317-8 Level 1: Ingal MPR has been rigorously tested to meet the requirements of EN-1317-8 achieving Level 1 results. In EN-1317-8 grading, Level 1 reflects the least severe impact upon the motorcyclist whereas Level 2 involves a more severe impact being transferred to the motorcyclist.• MASH Testing: The MASH standard does not allow for testing of Motorcycle Protection Rail systems however, Ezy-Guard systems have been successfully tested to MASH standards while Ingal MPR has been installed on the systems.Description DescriptionAcceptanceIngal MPR is fully compliant with AS/NZS 3845 Parts 1 and 2 and has been recommended for acceptance by the Austroads Safety Barrier Assessment Panel. Approved for use at impact speeds up to 100 km/h, it is trusted for a wide range of road safety applications.Description DescriptionPreformance MetricsMASH TL3 Compliance: Successfully managed the impact of a 2,270 kg utility vehicle and a 1,100 kg car at 100 km/h.EN 1317-8: Rated at Impact Severity Level 1, the lowest severity for this standard.TM3.60: Dummy impact midway between posts at 60 km/h with a 30° angle.TM1.6.0: Dummy impact against a post at 60 km/h with a 30° angle.
- Technical Specifications Technical SpecificationsSystem Specifications• MPR Rail Length:• MPR Rail Mass:• MPR System Mass:• Rail Height Above Ground:• Post Spacing:4000mm12.3kg4.65kg per meter60mm2m or 2.5mTechnical Specifications Technical SpecificationsApproved VariantsEzy-Guard Smart: Fully compatible with Ezy-Guard Smart systems, ensuring effective containment for motorcyclists.Ezy-Guard 4: Compatible with Ezy-Guard 4 systems, offering integrated protection for motorcyclists.Ezy-Guard HD: Compatible with Ezy-Guard HD, delivering enhanced protection for high-energy impact areas.Ezy-Guard HC: Fully compatible with the Ezy-Guard HC (High Containment) system, ensuring high containment capability.Ezy-Guard LDS: Approved for use with the Ezy-Guard LDS system, providing additional protection where needed.Technical Specifications Technical SpecificationsApproved ConnectionsMounting Bracket: Facilitates secure attachment to existing guardrails, ensuring easy installation and robust protection.Technical Specifications Technical SpecificationsAttachmentsMPR Terminal Piece: Utilized at the start and end of the rail, ensuring continuous protection along the entire run.
- Downloads DownloadsIngal MPR Product ManualPDF 3211KBDownload
Download
(3385 KB)
Download
(118 KB)
MPR Data Sheets
(pdf)
Download
(302 KB)
NZTA Acceptance Letter
(pdf)
Download
(99 KB)
