ET-SS
ET-SS

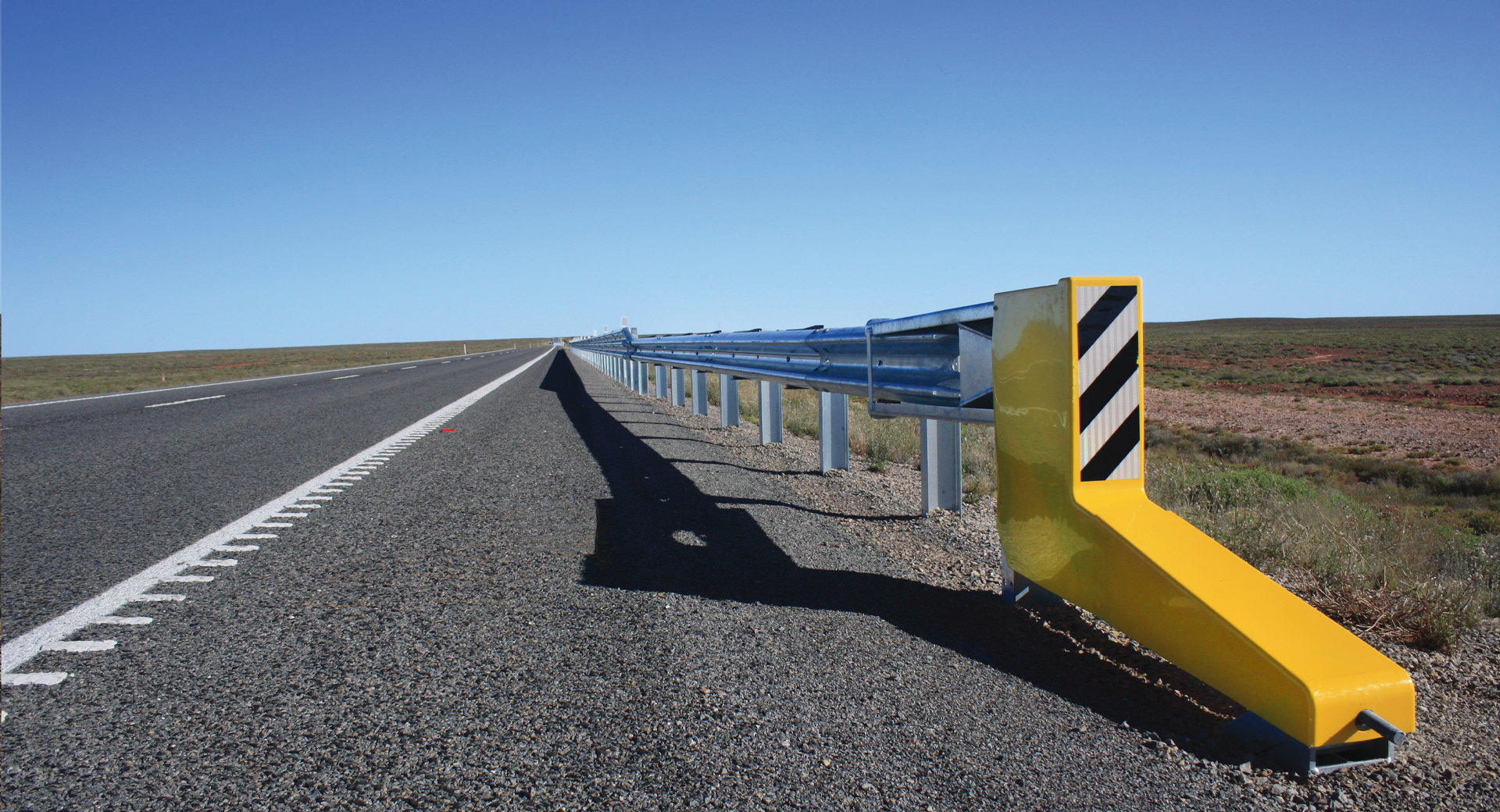

The ET-SS End Terminal system provides full MASH compliance to MASH TL2 and MASH TL3. Utilizing class leading Front Anchor Technology the ET-SS has a compact footprint and provides controlled redirection of vehicles while maintaining tension upon the Intermediate Barrier. The ET-SS End Terminal system provides full MASH compliance to MASH TL2 and MASH TL3. Utilizing class leading Front Anchor Technology the ET-SS has a compact footprint and provides controlled redirection of vehicles while maintaining tension upon the Intermediate Barrier.
MASH TL3/TL2
Compliant.
180mm
Head Impact Width.
15.48m
TL3 System Length.
7.9m
TL2 System Length.
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe ET-SS is a guardrail end terminal available in MASH TL2 and MASH TL3 compliant configurations.The unique Front Anchor Technology maintains Barrier tension after impact by securing the Barrier directly to an Anchor Post rather than releasing the Barrier as occurs with systems utilising cables. As the Rail extrudes under impact, a softer, more controlled vehicle ride down is achieved increasing safety for all road users.Description DescriptionFeaturesConnection to Longtitudinal Barriers, Transitions & Crash Cushions: at 787mm Rail Height, the ET-SS is designed to connect to all EzyGuard systems, MASH Transitions (including Ingal RBT) and Transitions to QuadGuard M10 enabling complete MASH TL-2 and TL-3 compliance.Narrow Head Width: With an 180mm wide Extruder Head which extends approx. 50mm beyond the Face of Rail, the ET-SS minimises intrusion into the Roadside/Shoulder space and reduces nuisance impacts.Consideration for Utilities & Services:The ET-SS is available in a Surface Mounted Post configuration. Engineered Ground Beam designs are available to suit Surface Mounted Posts. Alternate footing options are also available to suit the Anchor Post.Grading Options:Standard and Alternative Grading options to suit constrained environments are available for use with the ET-SS.Multiple Speed Environments: The ET-SS is ideally suited to all speed environments up to and including TL-3.Verge or Median Application: While the majority of installations are located on the left hand side of the road (verge), The ET-SS is also ideal for applications in a single-sided layout on the right hand side of traffic. In locations where a Double Sided Barrier Termination is desirable, consider the TREND Median Terminal and/or the QuadGuard M10 Crash Cushion.Rapid Installation: The ET-SS is supplied in a single bundle with fewer parts and can be installed quickly, reducing labour costs and time on site.Consideration for Motorcyclists: The ET-SS features a High Visibility Head Cover to protect vulnerable road users. A Metal Cover is available for locations where ground fires are a concern. Post Caps are also available to increase safety behind the ET-SS.Description DescriptionAcceptanceThe ET-SS is fully compliant with AS/NZS 3845 Parts 1 and 2 and has been recommended for acceptance by the Austroads Safety Barrier Assessment Panel.Description DescriptionPerformance MetricsMASH TL3: Withstands impacts at speeds up to 100 km/h with a maximum dynamic deflection as per test results.MASH TL2: Tested for impacts at speeds up to 70 km/h, offering a cost-effective solution for lower-speed zones.
- Technical Specifications Technical SpecificationsSystem SpecificationsRail Height:Impact Head Width:System Length TL3:System Length TL2:Post Spacing From Post 2 through Post 8:Length of Need:787mm180mm15.48m7.89m1.905mStarts at post #3 for TL3 and post #2 for TL2Technical Specifications Technical SpecificationsApproved VariantsBaseplate Installation: Allows attachment to a ground beam, avoiding underground utilities or assets. Suitable for both TL3 and TL2 configurations.Technical Specifications Technical SpecificationsApproved ConnectionsEzy-Guard 4: Compatible for use with Ezy-Guard 4, ensuring smooth transitions and reliable performance.Ezy-Guard Smart: Fully compatible, offering seamless integration with Ezy-Guard Smart systems for enhanced safety.Ezy-Guard HC: Can be used with the Ezy-Guard HC system for high containment applications.Ingal RBT: Compatible with the Ingal RBT system, ensuring compliance with MASH standards for transition connections.Rigid Transitions: Compatible with W-Beam or Thrie-Beam transitions to concrete barriers and the ASBAP rigid transition.
- Downloads DownloadsET-SS Product ManualPDF 3836KBDownload
ET-SS Product Manual
(pdf)
Download
(3836 KB)
