ET2000 Plus
ET2000 Plus

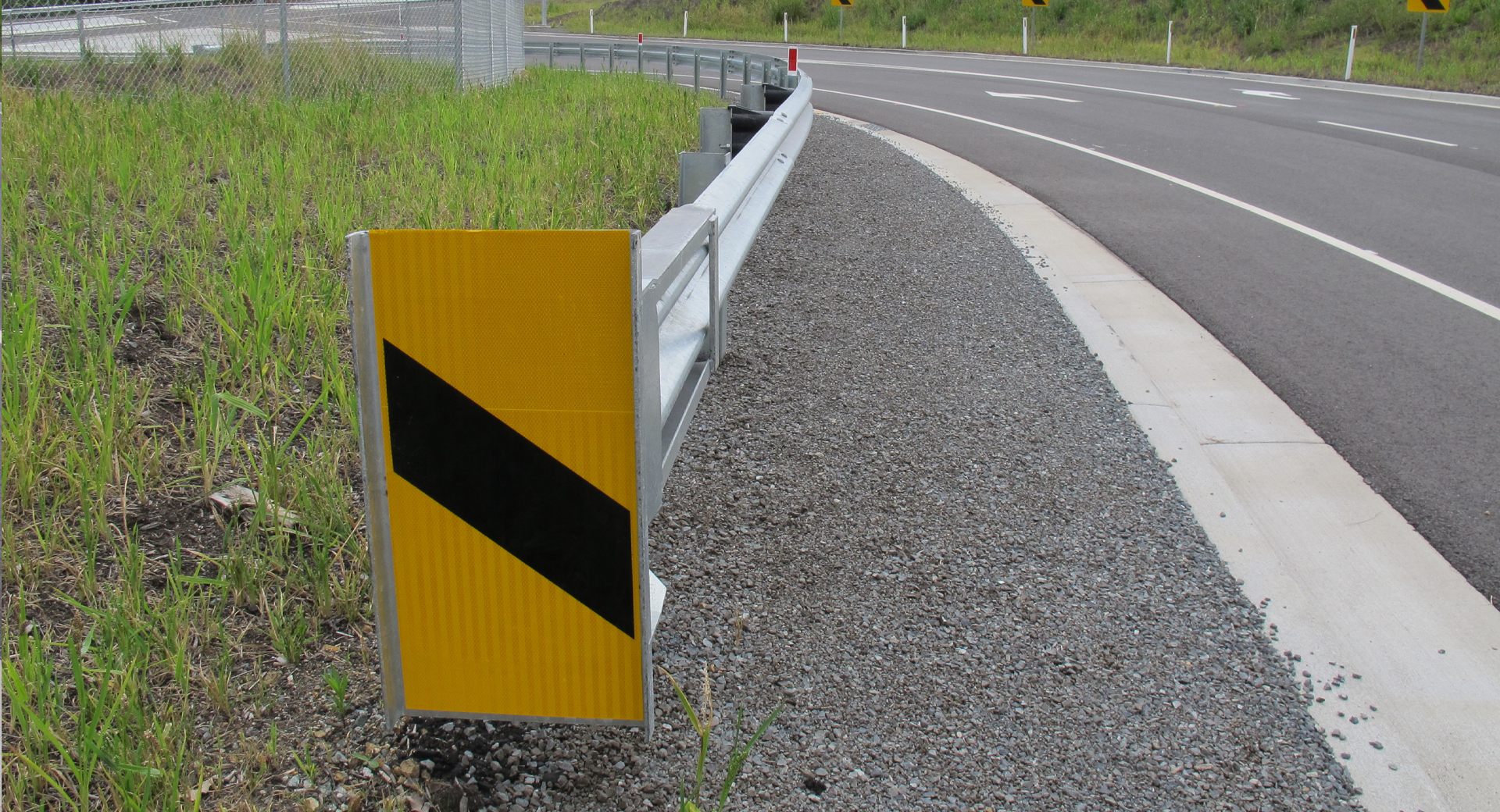

The ET-2000 End Terminal system provides full NCHRP-350 compliance to NCHRP-350 TL2 and NCHRP-350 TL3. The ET-2000 has a compact footprint and provides controlled redirection of vehicles with a controlled ride down. The ET-2000 End Terminal system provides full NCHRP-350 compliance to NCHRP-350 TL2 and NCHRP-350 TL3. The ET-2000 has a compact footprint and provides controlled redirection of vehicles with a controlled ride down.
NCHRP 350 TL3/TL2
Compliant
15.24m
TL3 System Length.
7.62m
TL2 System Length.
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe ET-2000 is a guardrail end terminal available in NCHRP- 350 TL2 and NCHRP-350 TL3 compliant configurations.It provides a controlled ride down as the impacting vehicle causes the terminal rail to extrude through the head of the system.Description DescriptionFeaturesConnection to Longtitudinal Barriers & Transitions: at 730mm Rail Height, the ET-2000 is designed to connect to all Ezy-Guard & Public Domain systems and Public Domain Transitions to Rigid Structures.Multiple Speed Environments: The ET-2000 is ideally suited to all speed environments up to and including TL-3.Rapid Installation: The ET-2000 is supplied in a single bundle with fewer parts and can be installed quickly, reducing labour costs and time on site.Consideration for Motorcyclists: The ET-2000 features a High Visibility Head Cover to protect vulnerable road users. Post Caps are also available to increase safety behind the ET-2000.Description DescriptionAcceptanceThe ET-2000 is listed as a legacy system by AustRoads and is compliant to NCHRP-350 TL2 and NCHRP-350 TL3.Description DescriptionPerformance MetricsNCHRP 350 Test Level 3: Successfully redirects a 2000kg vehicle at 100 km/h and 20° with a deflection of 0.9m.NCHRP 350 Test Level 2: Tested for 820kg vehicles at 70 km/h and 0° for lower-speed zones.
- Technical Specifications Technical SpecificationsSystem SpecificationsRail Height:Impact Head Width:System Length TL3:System Length TL2:Post Spacing From Post 2 through Post 8:Length of Need:730mm480mm15.24m7.62m1.905mStarts at post #3 for TL3 and post #2 for TL2Technical Specifications Technical SpecificationsApproved VariantsBaseplate Installation: Allows attachment to a ground beam, avoiding underground utilities or assets. Suitable for both TL3 and TL2 configurations.Technical Specifications Technical SpecificationsApproved ConnectionsEzy-Guard 4: Compatible for use with Ezy-Guard 4, ensuring smooth transitions and reliable performance.Ezy-Guard Smart: Fully compatible, offering seamless integration with Ezy-Guard Smart systems for enhanced safety.Ezy-Guard HC: Can be used with the Ezy-Guard HC system for high containment applications.Ingal RBT: Compatible with the Ingal RBT system, ensuring compliance with MASH standards for transition connections.Rigid Transitions: Compatible with W-Beam or Thrie-Beam transitions to concrete barriers and the ASBAP rigid transition.
- Downloads DownloadsET2000 Product ManualPDF 2358KBDownload
Download
(2359 KB)
