Trailing Terminal
Trailing Terminal

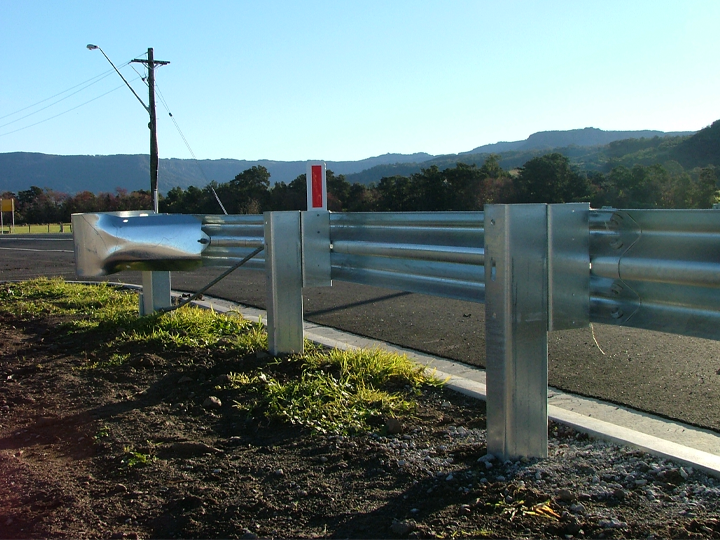

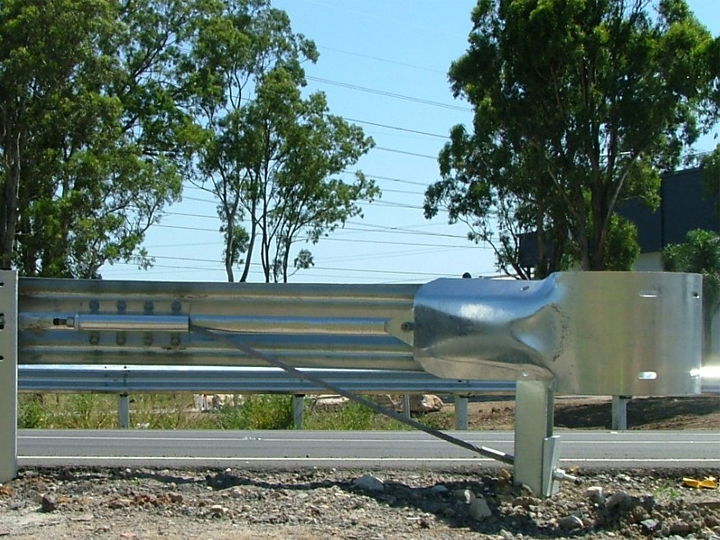

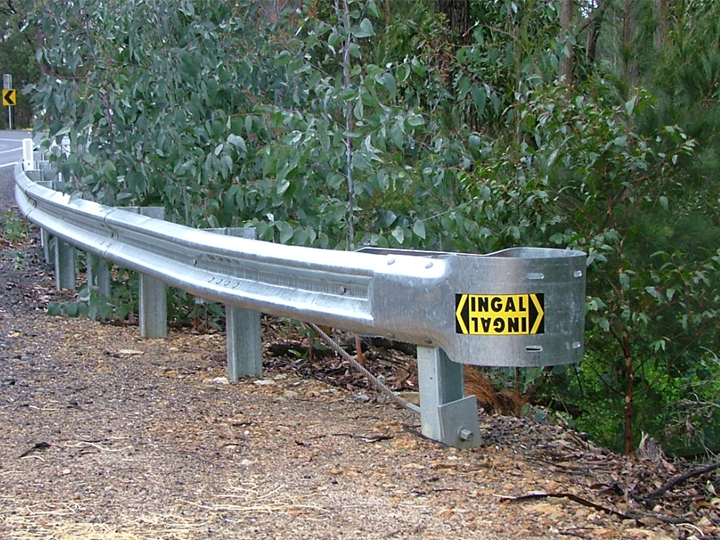

The Trailing Terminal (also known as a Departure Terminal) is a Public Domain design used to anchor W-Beam Road Safety Barriers in locations where the Terminal cannot be impacted by an errant vehicle. The Trailing Terminal (also known as a Departure Terminal) is a Public Domain design used to anchor W-Beam Road Safety Barriers in locations where the Terminal cannot be impacted by an errant vehicle.
MASH TL3
Compliant in Select Jurisdictions.
Product Information
Product Information
Product Information Product Information
- Description DescriptionThe Trailing Terminal (also known as a Departure Terminal) is a Public Domain design used to anchor W-Beam Road Safety Barriers in locations where the Terminal cannot be impacted by an errant vehicle.In jurisdictions where the Trailing Terminal is approved for use, it provides a compact non crashworthy method to end a WBeam run where there is no chance of an impact to the end of the Terminal.Description DescriptionFeatures• Connection to Longtitudinal Barriers, Transitions & Crash Cushions: the Trailing Terminal may be connected to connect to all EzyGuard systems, MASH Transitions (including Ingal RBT) and Transitions to QuadGuard M10 where permitted by the relevant Road Authority/jurisdiction.• MASH Compliant: Approved as MASH compliant by some Road Authorities/jurisdictions.• Anchorage System:The robust anchorage system ensures the stability and durability of the Barrier under tension.• Durable Construction: Made from high-quality galvanized steel for long-lasting performance in all weather conditions.Description DescriptionAcceptanceThe Trailing Terminal (TT) is accepted to anchor w-beam barrier systems on the trailing / departure end of the barrier outside the clear zone of the opposing traffic. Manufactured to jurisdiction-specific design, it is trusted to maintain desired barrier containment level, enhancing motoring safety for road users.Description DescriptionPerformance MetricsMASH TL3: Designed to contain and redirect errant vehicles, reducing the risk of rollover and injury.
- Technical Specifications Technical SpecificationsApproved VariantsBaseplate Installation: Allows attachment to ground beam to avoid underground utilities or assetsTechnical Specifications Technical SpecificationsApproved ConnectionsEzy-Guard 4: Compatible with the Ezy-Guard 4 system for high containment applications.Ezy-Guard HC: Suitable for heavy containment systems, offering maximum protection.
- Downloads DownloadsTrailing Terminal Acceptance LetterPDF 6246KBDownloadDownloads DownloadsNZ Steel Post Trailing Terminal ChecklistPDF 6246KBDownload
Download
(80 KB)
